IDECHW1B-A4F22R-K Non-Illuminated Pushbutton 40mm Mushroom Maintained Red 2NO+2NC

Product Code: HW1B-A4F22R-K

  • Non-illuminated mushroom actuator
  • IP65 front, IP20 terminal protection
  • 2NO+2NC contact configuration
  • Maintained function with 40mm diameter
  • Operates in -25 to 60°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

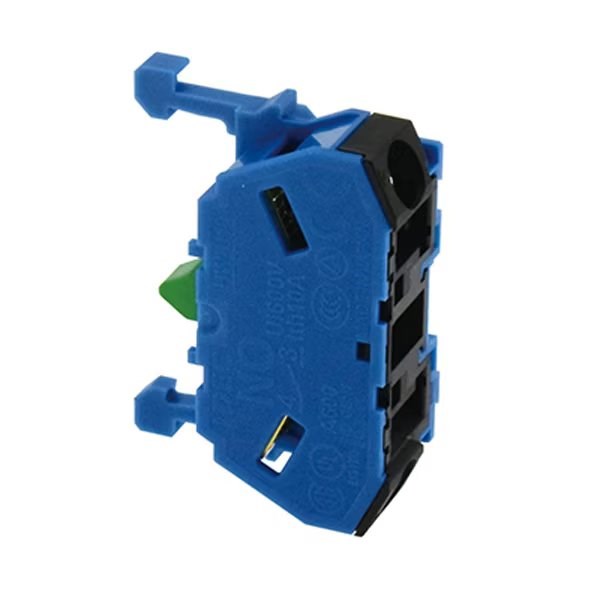

Components Ring Cap Contact Block NC Contact Block NO Pushbutton
No. of Normally-open Contacts 2
No. of Normally-closed Contacts 2
Terminal Shape Screw terminal
Product Type Pushbutton
Brand IDEC
Series HW
Actuator Type Mushroom
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Button Colour Red
Contact Configuration 2NO+2NC
Contact Material Silver
Cutout Size 40 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 40 mm
Function Maintained
Humidity 45-85%
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Operational Temperature -25 to 60 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Standards and Approvals SEMI S2
Terminal Type Screw

Description

The IDEC HW1B-A4F22R-K is a robust 40mm red mushroom push button designed for maintained operation. It features 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, ensuring versatile control options within circuits. The button's tamperproof construction and finger-safe IP20 contacts prioritize safety and reliability. Compliant with EN60947-5-5 and SEMI S2 standards, this emergency stop push button from the HW series is engineered to meet rigorous industry requirements.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
