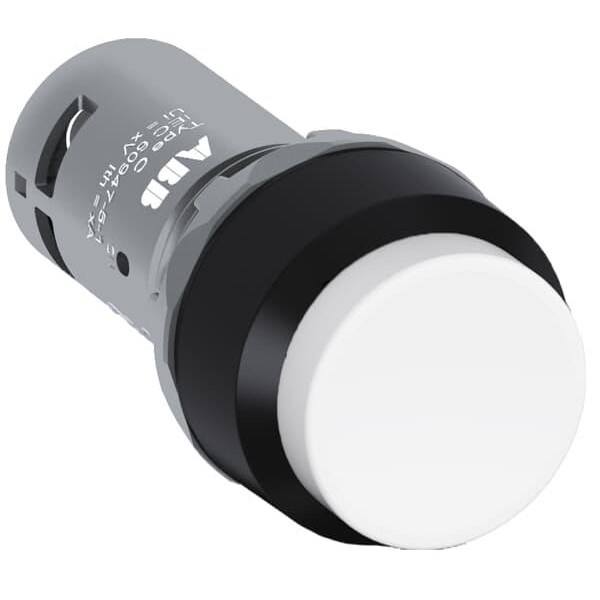

The CP Series momentary push button is a robust and reliable choice for industrial and commercial applications. With its non-illuminated design, it offers functionality without the distraction of unnecessary lighting, making it ideal for environments where simplicity and efficiency are paramount.
Measuring 30 mm in width and height, with a depth of 55 mm, this compact device is built to fit seamlessly into various panel configurations. Its IP66, IP67, and IP69K front protection ratings ensure resistance against dust ingress and high-pressure water jets from any direction. The terminal section is rated at IP20, providing basic protection suitable for most indoor settings.
Designed to operate efficiently within a temperature range from -25 to 70 degrees Celsius, the CP Series push button can withstand harsh environmental conditions without compromising performance. For storage purposes, it accommodates even more extreme temperatures ranging from -40 to 85 degrees Celsius.
In terms of connectivity, the product features screw terminals with a tightening torque of 1 N-m. It supports flexible connections with ferrules or insulated ferrules as well as solid wires ranging from 0.5 to 1.5 square millimeters in size. A wire stripping length of 6 mm ensures secure and efficient installation.
The actuator type is extended for easy operation while maintaining an ergonomic profile that prevents accidental activation. The contact configuration includes one normally open (NO) and one normally closed (NC) contact setup which allows versatile use across different circuit designs.
Rated at a frequency of 50/60 Hz with a thermal current rating of 5 A, this push button meets rigorous standards including EN IEC specifications: 60947-1, -5-1, -5-5; EN IEC guidelines: 60073; and EN IEC norms: 60529—ensuring compliance with international safety requirements.
With mechanical life expectancy reaching up to half a million operations combined with its rated insulation voltage standing at an impressive level of up to300 V plus impulse withstand capability going as high as6 kV—this device promises longevity alongside reliability under demanding circumstances often encountered within industrial setups
Weighing just22 grams yet featuring durable plastic bezel material complemented by classic white button color—it embodies both lightweight convenience coupled together long-lasting durability you’d expect when selecting components crucial your operational success
Finally housed NEMA-rated enclosure types encompassing options such as1 ,12 ,13 ,3R ,4 &4X —this versatile piece equipment not only safeguards internal mechanisms but also guarantees adaptability wide array usage scenarios ensuring peace mind those who choose integrate their systems
