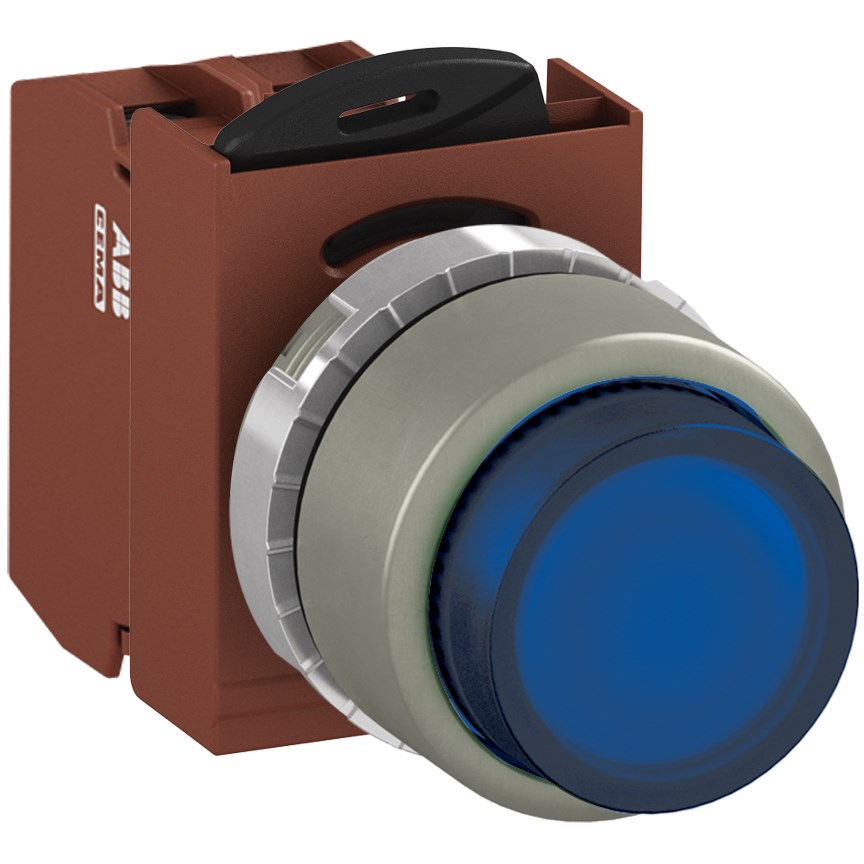

When selecting components for demanding environments, reliability and compliance with standards are crucial. This illuminated control device is designed to meet the rigorous demands of mining, construction, and heavy industry applications. With a rated voltage of 12 VAC/DC and an extended actuator type, this product ensures consistent performance across various industrial settings.
The device features an IP66 degree of protection, making it highly resistant to dust ingress and powerful water jets from any direction. This level of protection guarantees durability in harsh conditions, ensuring long-term operational integrity. It complies with several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications—offering assurance that it meets global safety requirements.
Designed to function optimally within a wide ambient temperature range from -30 to 70 degrees Celsius, this device is suitable for diverse climatic conditions often encountered in industrial environments. The screw connection type facilitates secure installation while maintaining electrical integrity.
With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this component is engineered for high-voltage applications while providing robust electrical insulation properties. Its contact configuration is set at 1NC (normally closed), which can be integral in circuit-breaking or switching operations where fail-safe functionality is required.
The actuator has a diameter of 22 mm with both the cutout size matching at the same dimension for seamless integration into panels or consoles. The lamp color is blue—ideal for visual indication—and utilizes a BA9S lamp type known for its efficiency and longevity.
This maintained function unit includes essential components such as the operator interface itself along with contact block accessories and power supply (lamp block) ensuring that all necessary parts are provided for straightforward deployment right out-of-the-box.
Constructed with metal bezel material not only adds durability but also enhances aesthetic appeal suitable for professional settings where equipment appearance matters alongside functionality.
In summary if you're involved in sectors like mining or construction where equipment reliability under tough conditions isn't just preferred but mandatory then considering this robustly built electrically compliant control solution could very well align seamlessly with your technical needs without compromise on quality or performance metrics required by such industries.
