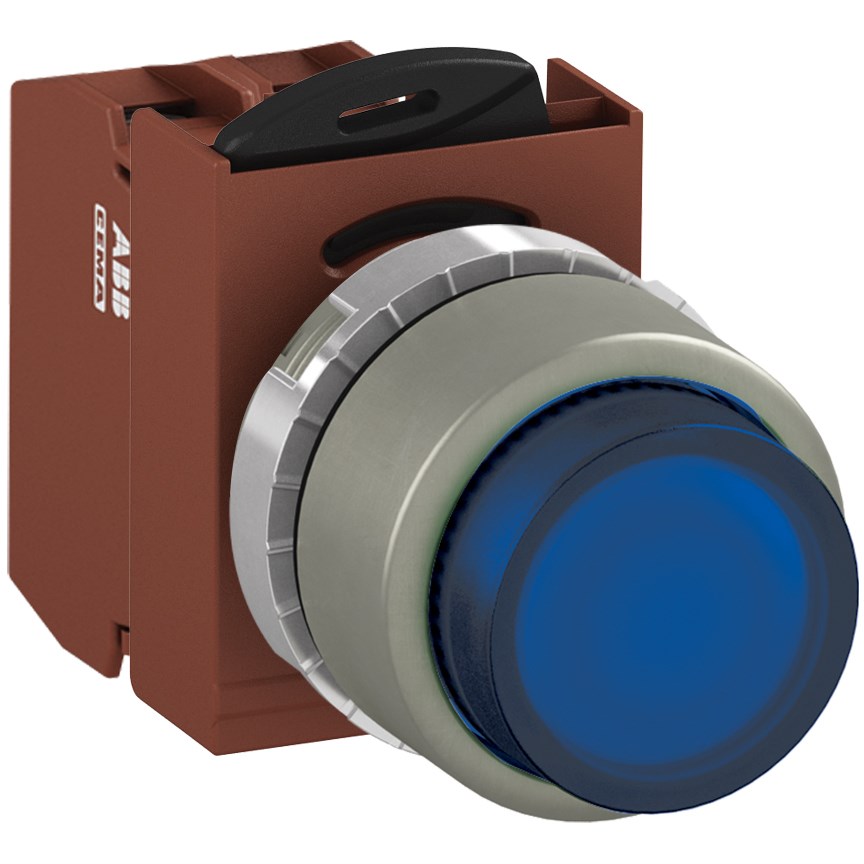

When selecting a reliable and robust control component for your industrial setup, this illuminated pushbutton stands out with its solid performance and compliance to international standards. Designed specifically for demanding environments such as mining, construction, and heavy industry applications, this device offers both durability and functionality.
Operating at a rated voltage of 12 VAC/DC, the unit is built to withstand tough conditions with an impressive protection rating of IP66. This ensures complete protection against dust ingress and powerful water jets—ideal for harsh outdoor or indoor environments. The ambient temperature range from -30 to 70 degrees Celsius further enhances its suitability for extreme conditions.
The pushbutton features an extended actuator type with a maintained function, allowing users to maintain the button's state without continuous pressure. It incorporates a blue BA9S lamp that not only provides clear visual feedback but also adds aesthetic value to any panel it adorns.
Ease of installation is assured through its screw connection type, while the 22 mm diameter cutout size makes it compatible with standard panel designs. With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, safety in high-voltage applications is assured.
In terms of contact configuration, it comes equipped with one normally open (1NO) contact block capable of handling up to 10 A thermal current. This makes it suitable for various control circuit applications where reliability is paramount.
Constructed with a metal bezel material, the device promises longevity even in rugged use cases. The included operator components comprise the contact block, maintained accessories, power supply (lamp block), and lamp—all tailored to provide seamless integration into existing systems.
Conforming rigorously to standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No.14 approvals ensures that this product meets essential safety requirements globally recognized in industrial sectors.
This illuminated pushbutton represents an optimal choice when you need dependable operation combined with straightforward installation within challenging environments typical across Australian industries.
