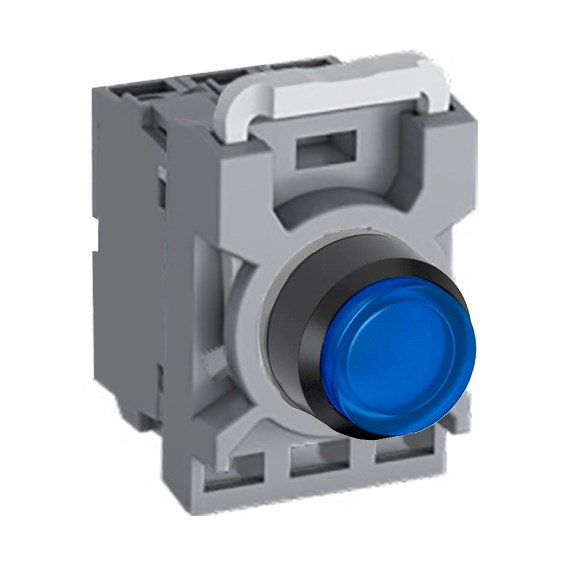

When selecting the right components for your industrial or commercial applications, understanding the specific technical aspects of each product is crucial. This illuminated actuator switch offers a blend of functionality and durability, making it a reliable choice for various settings.
Operating at a rated voltage of 12 VAC/DC, this switch ensures efficient performance in low-voltage environments. The illumination feature, highlighted by its blue LED lamp, not only enhances visibility but also adds to the operational ease, especially in low-light conditions. With an extended actuator type and a maintained function, this switch is designed to remain in its last set position until manually changed, providing stability and consistency in operations.
The degree of protection offered by this product is noteworthy; with an IP66 rating on the front and IP20 at the terminal level, it promises robust resistance against dust and powerful water jets from any direction at its interface while maintaining basic protection at connection points. This makes it suitable for environments where exposure to such elements might be frequent.
Safety and compliance are assured with adherence to multiple standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. These approvals signify that the product meets rigorous international safety requirements which are crucial for peace of mind in critical applications.
Designed to withstand ambient temperatures ranging from -25 to 70 degrees Celsius, this switch can operate reliably across various environmental conditions without compromising performance. Its rated insulation voltage stands at an impressive 690 V while accommodating a rated impulse withstand voltage of up to 6 kV—highlighting its robustness against transient overvoltages.
The contact configuration features both normally open (NO) and normally closed (NC) contacts (1NO+1NC), offering versatility in circuit design options. Rated thermal current capacity reaches up to 10 A which supports substantial current flow without overheating risks.
With a diameter cutout size set at 22 mm matching its bezel size crafted from durable plastic material—the installation process remains straightforward while ensuring compatibility with standard panel designs. Included within this package are essential components: operator unit itself alongside contact block holder plus LED block ensuring you have everything needed for seamless integration into your system setup.
This comprehensive combination makes it an ideal candidate when considering switches that deliver both reliability and efficiency tailored specifically towards meeting demanding industrial needs effectively.
