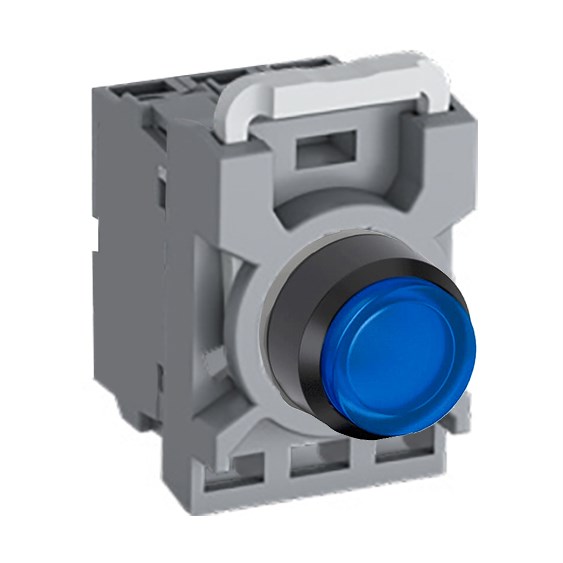

When selecting components for industrial and commercial applications, understanding the technical specifications is crucial. This illuminated push button offers a reliable solution with its robust design and essential features tailored for demanding environments.
The device operates at a rated voltage of 12 VAC/DC, providing flexibility for various low-voltage applications. It stands out with an IP66 front protection rating, ensuring resistance to dust and powerful water jets, making it suitable for harsh conditions. However, the terminal has an IP20 rating, so appropriate precautions should be taken during installation to maintain safety standards.
Designed in compliance with several international standards such as EN IEC 60947-1 and UL 508 among others, this product meets rigorous quality benchmarks. Its ambient temperature range from -25 to 70 degrees Celsius allows it to function effectively in diverse climates without compromising performance.
With a rated insulation voltage of 690 V and an impulse withstand voltage of 6 kV, this push button is engineered for resilience against electrical disturbances. The contact configuration includes two normally closed (2NC) contacts which are ideal for safety circuits that require breaking the circuit when activated.
The actuator features an extended type with a diameter of 22 mm, providing ease of operation even when wearing gloves—a common requirement in industrial settings. Its maintained function ensures that once activated, the device remains in its current state until manually reset or deactivated.
Illumination is provided by a blue LED lamp housed within a plastic bezel material—offering both durability and visibility while minimizing energy consumption compared to traditional lighting solutions. The cutout size also measures at 22 mm which aligns with standard panel designs allowing seamless integration into existing systems.
Included components such as the operator, contact block holder and LED block simplify assembly and maintenance efforts—streamlining installation processes while reducing downtime during service intervals.
This product's rated thermal current capacity is up to 10 A supporting moderate load applications commonly encountered in automation systems or control panels. By delivering consistent operational reliability along with adherence to key industry certifications like CSA C22.2 No.14 you can trust this component will deliver dependable performance where it's needed most in your operations.
