For those in the industrial and commercial sectors seeking a reliable, robust, and efficient solution for their electrical needs, this illuminated actuator offers an impressive array of features tailored to meet rigorous technical demands. This product is designed to operate effectively at a rated voltage of 220 VDC and boasts an IP66 degree of protection on the front, ensuring resilience against dust and powerful water jets. Meanwhile, its terminal protection is rated at IP20.
The actuator's design adheres to several international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as North American standards UL 508 and CSA C22.2 No.14. This compliance ensures that the product meets stringent safety and performance criteria required in various applications.
Operating efficiently across a broad temperature range from -25°C to +70°C makes it suitable for diverse environments. The actuator supports a high-rated insulation voltage of up to 690 V along with a rated impulse withstand voltage of up to 6 kV—highlighting its capability to handle significant electrical stress without compromising functionality.
Its contact configuration includes two normally open (2NO) contacts which are ideal for systems requiring straightforward on/off control mechanisms. The actuator type is extended with a maintained function ensuring that once activated it remains in position until manually reset—a feature particularly useful in applications where continuous operation is critical.

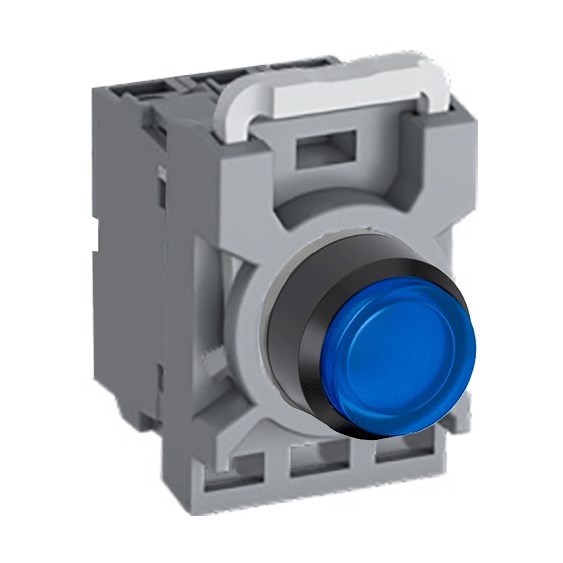

With a diameter of just 22 mm and featuring an LED lamp with blue illumination housed within plastic bezel material—this product not only fits seamlessly into compact spaces but also offers clear visibility even in low-light conditions thanks to its LED technology.
The cutout size matches the diameter at precisely 22 mm allowing for easy integration into existing panels or setups without requiring extensive modifications. Included components such as the operator itself alongside the contact block holder further simplify installation processes while enhancing operational efficiency.
Rated thermal current stands at an impressive 10 A making this actuator suitable for handling moderate electrical loads commonly encountered in industrial settings.
Overall this illuminated actuator combines durability compliance versatility and ease-of-use making it an excellent choice for professionals looking to enhance their control systems' reliability performance or both while maintaining adherence to international safety standards.
