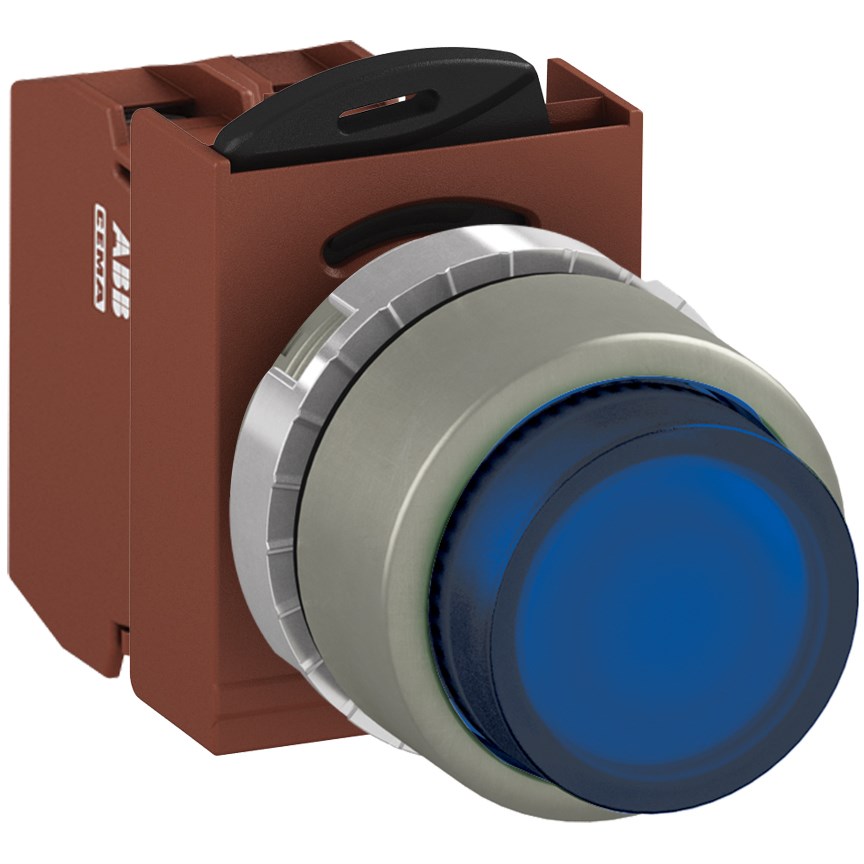

The product in focus is a robust and reliable illuminated switch designed for industrial applications. With a rated voltage of 24 VAC/DC, this switch ensures efficient operation across various systems, making it an ideal choice for professionals in mining, construction, and heavy industry sectors. Its illumination feature enhances visibility and usability in dimly lit environments.
Built to withstand harsh conditions, the switch boasts an IP66 degree of protection. This means it is dust-tight and protected against powerful water jets, ensuring durability even in demanding settings. The device complies with several standards and approvals such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No. 14 certifications which validate its safety and performance credentials.
The ambient temperature range of -30 to 70 degrees Celsius allows this switch to operate effectively in extreme climates without compromising functionality or safety. It features a Faston connection type that facilitates quick and secure installations.
With a rated insulation voltage of 690 V and an impulse withstand voltage of 4 kV, this switch offers high electrical endurance suitable for heavy-duty operations. The contact configuration is set at 1NO (normally open), providing straightforward integration into existing systems.
Designed with practicality in mind, the actuator type is extended for ease of use while maintaining operator comfort during prolonged usage periods. The diameter stands at a standard size of 22 mm which fits seamlessly into most control panels or consoles.
A striking blue lamp color adds visual clarity while the BA9S lamp type ensures long-lasting illumination with minimal maintenance needs. The maintained function allows continuous operation until manually reset or switched off by the user.
This product supports a rated thermal current of up to 10 A which makes it versatile enough for various power requirements within industrial setups. Constructed from durable metal materials the bezel complements both aesthetic appeal and structural integrity.
Installation is simplified thanks to its cutout size matching the diameter at precisely 22 mm ensuring hassle-free fitting processes across different panel types or configurations without additional modifications needed onsite setup times are minimized significantly benefiting overall project timelines positively impacting cost efficiency too!
Included components are comprehensive featuring not only just operator but also contact block maintained accessories power supply (lamp block) alongside lamp itself providing everything necessary right out box reducing need procure separate parts further streamlining procurement logistics enhancing operational readiness quickly efficiently possible
In summary if you seek dependable solution capable meeting rigorous demands presented within challenging environments look no further than this meticulously engineered illuminated switch tailored specifically meet exceed expectations professional users alike delivering unparalleled value investment longevity unmatched reliability MPN: [Manufacturer Part Number]
