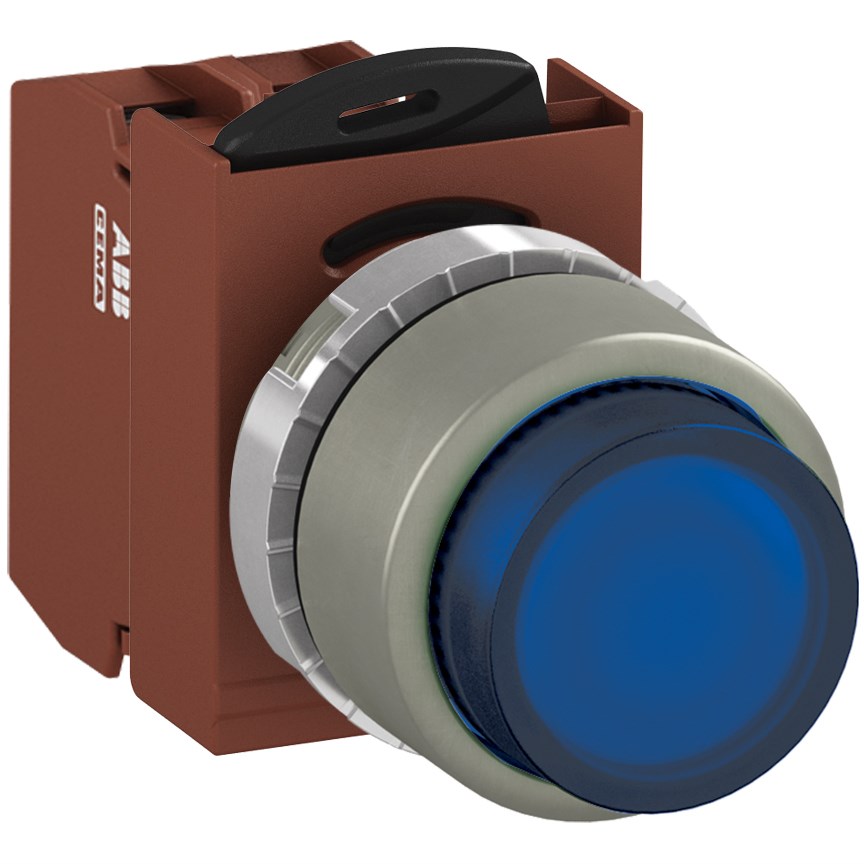

This industrial-grade illuminated pushbutton is engineered for demanding environments, making it a reliable choice for mining, construction, and heavy industry applications. With a rated voltage of 24 VAC/DC and an extended actuator type, this device ensures efficient operation in various settings.
The product boasts an IP66 degree of protection, safeguarding against dust and powerful water jets. This makes it suitable for harsh conditions where durability is paramount. The pushbutton meets several international standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These standards assure users of its safety and reliability in industrial applications.
Operating within a wide ambient temperature range from -30 to 70 degrees Celsius, the device maintains functionality under extreme weather conditions. Its screw connection type facilitates straightforward installation and secure connectivity.
The pushbutton features a rated insulation voltage of up to 690 V with a contact configuration of one normally open (1NO) contact. It also has a high rated impulse withstand voltage of 4 kV which enhances its resilience against transient overvoltages.
A standout feature is its blue LED illumination housed within the LED block light type that provides clear visibility even in low-light environments. The maintained function allows the button to stay engaged without continuous pressure—ideal for operations requiring sustained activation.
With a diameter and cutout size both measuring at 22 mm, it fits seamlessly into standard panel designs while the metal bezel material adds robustness to its build quality. The lamp's LED technology not only offers long-lasting performance but also energy efficiency compared to traditional lighting solutions.
Rated at a thermal current capacity of up to 10 A, this component can handle substantial electrical loads without compromising performance or safety. The package includes the operator mechanism along with essential components like the contact block maintained accessories LED block and LED ensuring comprehensive functionality right out of the box.
Overall this illuminated pushbutton is designed with precision engineering tailored specifically for rigorous industrial demands offering both reliability and ease-of-use across diverse operational contexts.
