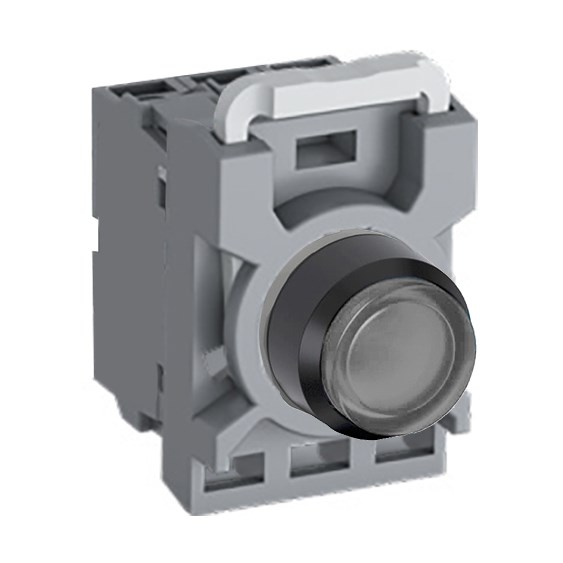

When it comes to selecting the right components for your industrial or commercial applications, understanding the technical specifications is crucial. This illuminated pushbutton offers a reliable solution with its robust design and comprehensive features that cater to demanding environments.
This device operates efficiently within a rated voltage range of 110-130 VAC/DC, ensuring versatility across various electrical systems. The illumination feature enhances visibility, making it ideal for environments where clear indication is paramount. With an IP66 front protection rating, this pushbutton is well-suited for harsh conditions as it effectively resists dust ingress and powerful water jets. Meanwhile, the IP20 terminal protection ensures safety from accidental contact at the rear end.
Conforming to key standards such as EN IEC 60947-1, EN IEC 60947-5-1, and others including UL 508 and CSA C22.2 No. 14, this product meets rigorous international safety and performance requirements. These certifications ensure that you are investing in a component that adheres to global benchmarks for quality and reliability.
Designed to operate within ambient temperatures ranging from -25°C to 70°C, this pushbutton maintains functionality across diverse climatic conditions—whether you're dealing with cold storage facilities or high-temperature manufacturing plants.
The rated insulation voltage of 690 V coupled with a rated impulse withstand voltage of 6 kV highlights its capability to handle significant electrical stresses without compromising on safety or performance. The contact configuration of 2NO (two normally open contacts) provides straightforward integration into control circuits where maintaining circuit continuity upon actuation is desired.
Featuring an extended actuator type with a diameter of 22 mm, this device offers ease of operation while fitting seamlessly into standard cutout sizes also measuring at 22 mm in diameter. The lamp uses LED technology in clear color which not only ensures longevity but also reduces maintenance needs compared to traditional lighting options.
With a function set as maintained action mode users can activate the switch once and have it remain in position until manually reset—a convenient feature for certain operational processes requiring sustained activation.
Constructed with plastic bezel material this unit balances durability with cost-effectiveness making it suitable for both budget-conscious projects and those requiring resilient materials against environmental factors.
Included components such as the operator contact block contact block holder and LED block simplify installation by providing all necessary parts in one package streamlining setup processes significantly reducing downtime during deployment phases.
