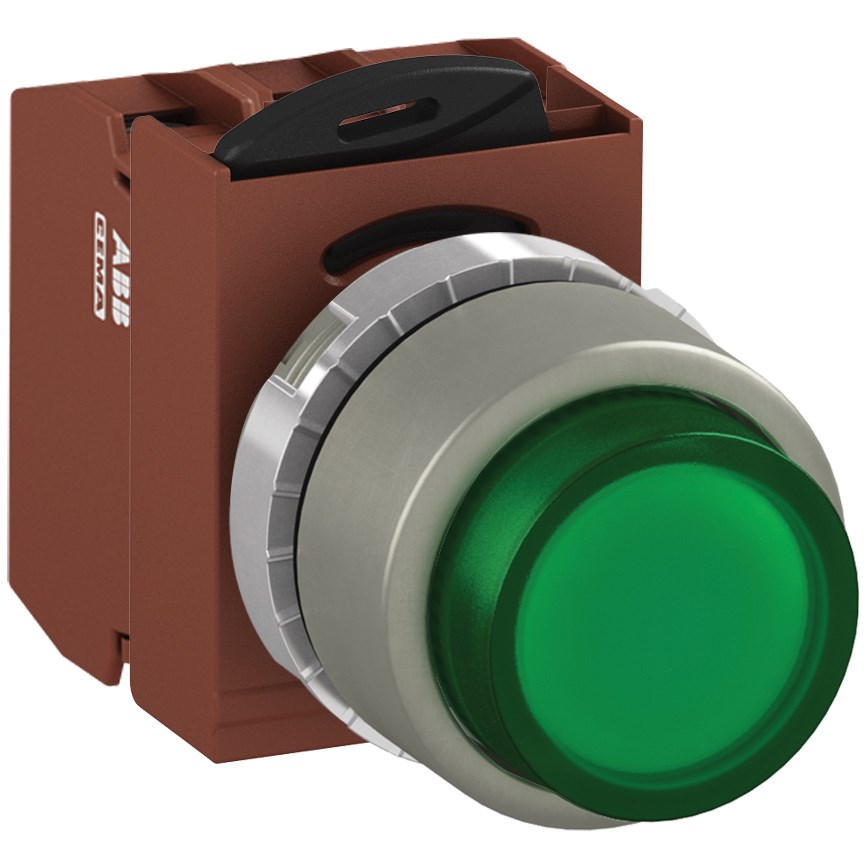

When selecting the right component for your industrial or commercial applications, understanding the technical specifications is crucial. This illuminated actuator is designed to meet rigorous demands in environments such as mining, construction, and heavy industry. Its robust build and compliance with international standards make it a reliable choice.
Operating at a rated voltage of 24 VAC/DC, this device ensures compatibility with common power systems. It boasts an impressive degree of protection at IP66, signifying excellent resistance against dust and powerful water jets—ideal for challenging conditions often encountered in industrial settings.
The actuator adheres to several key standards: EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 approvals for North American markets. These certifications guarantee adherence to stringent safety and performance requirements.
With an ambient temperature range from -30 to 70 degrees Celsius, this product operates effectively in diverse climates without compromising functionality. The faston connection type simplifies installation while maintaining secure electrical connections.
Rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 4 kV—highlighting its capacity to handle unexpected surges or spikes in electrical supply safely. The contact configuration features two normally open (2NO) contacts which are suitable for various control circuits.
The actuator's extended type design allows easy operation even when wearing gloves—a practical feature in industrial environments where safety gear is essential. With a diameter of 22 mm and matching cutout size, it integrates seamlessly into standard panel configurations.
Illumination is provided by a green BA9S lamp type which not only enhances visibility but also aids quick identification during operations. The maintained function ensures that once activated, the state remains until manually reset—a useful feature for processes requiring consistent activation over time.
Rated thermal current is set at 10 A ensuring sufficient capacity for handling typical loads encountered in its application areas without overheating risks. Constructed with a metal bezel material provides durability and longevity even under harsh conditions.
Included within this package are all necessary components: operator unit contact block maintained accessories power supply (lamp block) along with the lamp itself simplifying procurement logistics by offering everything needed within one purchase ensuring seamless integration into existing systems without additional parts required thereby reducing downtime during replacements or upgrades enhancing overall efficiency across operations making it an ideal choice where reliability matters most especially given its suitability across demanding sectors like mining construction heavy industry thanks largely due comprehensive design considerations focused on meeting specific needs these industries face daily through combination advanced engineering materials quality assurance protocols applied throughout manufacturing process ultimately resulting product capable delivering exceptional performance long service life consistently exceeding expectations users worldwide seeking dependable solutions complex challenges posed modern operational landscapes today tomorrow beyond MPN
