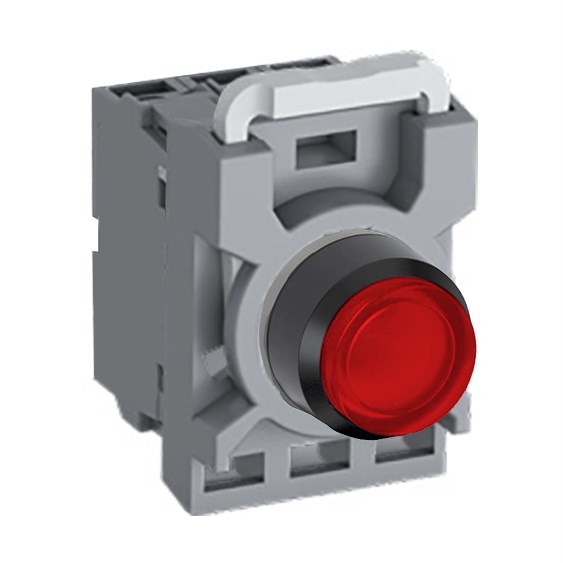

This industrial-grade illuminated actuator is designed for reliable performance in various commercial and industrial applications. Operating within a rated voltage of 110-130 VAC/DC, it offers versatility across different electrical systems. The device features an IP66 protection rating at the front, ensuring robust resistance against dust and powerful water jets, while the terminal side holds an IP20 rating for basic protection against solid objects.
Engineered to meet rigorous standards, this product complies with EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, as well as UL 508 and CSA C22.2 No.14 certifications. These approvals underscore its reliability and safety in demanding environments.
With an ambient temperature range from -25 to 70 degrees Celsius, this actuator maintains functionality across extreme temperatures commonly encountered in industrial settings. The rated insulation voltage stands at a high level of 690 V, providing excellent electrical insulation properties.
The contact configuration includes one normally open (NO) and one normally closed (NC) contact setup that supports diverse control circuit requirements. It boasts a rated impulse withstand voltage of up to 6 kV for enhanced durability against transient overvoltages.
The actuator's extended type design ensures ease of operation while the red LED lamp provides clear visual status indication under various lighting conditions. With a maintained function mechanism, it retains its position until manually reset or actuated again.
Constructed with a durable plastic bezel material and designed for a standard cutout size of 22 mm diameter—matching the common industry specifications—it facilitates straightforward installation or replacement processes.
Rated with a thermal current capacity of up to 10 A, this product efficiently handles moderate power loads typical in many automation systems without overheating risks. The inclusion package comprises an operator unit along with essential components such as the contact block holder and LED block—offering comprehensive installation convenience.
Overall, this illuminated actuator delivers dependable performance backed by stringent compliance standards—a practical choice for professionals seeking reliable solutions tailored to their technical needs in both new installations or system upgrades.
