In the world of industrial and commercial applications, selecting the right components is crucial for ensuring efficiency and reliability. This particular product is designed with a careful balance of functionality and durability, making it suitable for a range of technical environments.
The device operates at a rated voltage of 24 VAC/DC, providing flexibility in both alternating current (AC) and direct current (DC) setups. Its illumination feature ensures visibility, which is often critical in industrial settings where quick identification can enhance operational safety.
One of the standout characteristics is its degree of protection. With an IP66 rating on the front side, this product offers excellent resistance against dust ingress and high-pressure water jets from any direction—ideal for challenging environments. The terminal side is rated at IP20, offering basic protection against finger contact, which suits indoor installations where more rigorous environmental defenses are unnecessary.
Compliance with multiple standards such as EN IEC 60947-1 and UL 508 highlights its adherence to international safety regulations, assuring users of its quality and reliability across different regions including Australia. The ambient temperature range from -25 to 70 degrees Celsius allows it to perform effectively in diverse climatic conditions without compromising function or safety.
For electrical specifications, the rated insulation voltage stands impressively at 690 V while maintaining a robust impulse withstand voltage capacity of 6 kV. This makes it well-suited for handling transient overvoltages that may occur in industrial power systems.

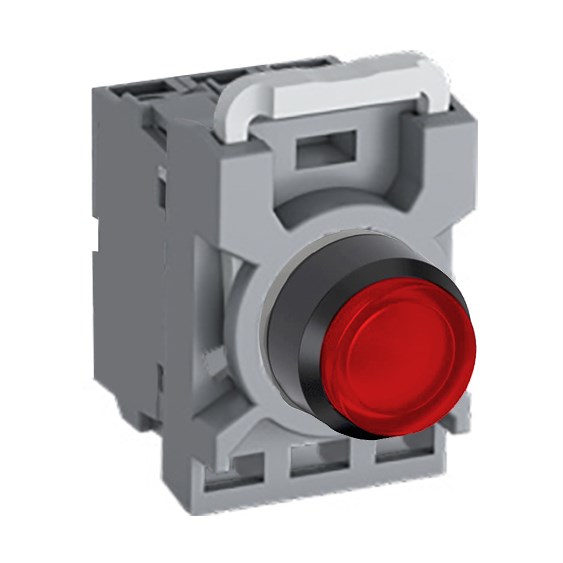

The actuator type is extended with a diameter set at 22 mm—standard sizing that fits seamlessly into existing systems without requiring modifications. Equipped with red LED illumination, it provides clear visual cues even under low-light conditions typically found in many industrial settings.
Designed for maintained operation functions, this device ensures consistent performance during prolonged use periods—a factor that's often essential in continuous process industries. Additionally, the contact configuration features two normally open (2NO) contacts supporting straightforward integration into control circuits needing simple on-off operations.
With a rated thermal current capacity up to 10 A, this component can handle moderate power loads efficiently while minimizing risks associated with overheating or overloads. Constructed using durable plastic materials for its bezel adds lightweight benefits without sacrificing strength or longevity.
Installation convenience comes through standardized cutout sizes also measured at 22 mm allowing easy retrofitting into existing panels or enclosures already prepared to accommodate similar dimensions. Moreover included within each package are an operator unit along with necessary accessories like contact block holder and LED block simplifying assembly processes onsite thereby reducing downtime during setup phases.
