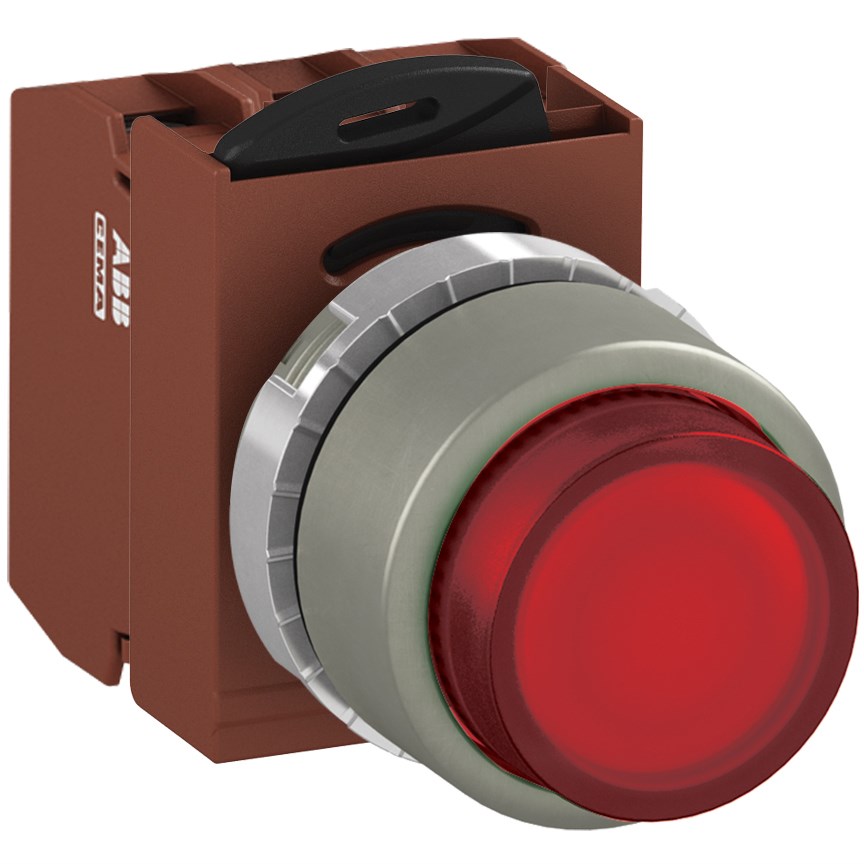

The product at hand is a robust and reliable illuminated pushbutton switch, designed to meet the demanding needs of industrial environments such as mining, construction, and heavy industry. With a rated voltage of 6 VAC/DC and an impressive degree of protection at IP66, this component ensures durability and resilience against harsh conditions. It stands up to rigorous standards with approvals from EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14.
Operating efficiently in ambient temperatures ranging from -30 to 70 degrees Celsius, this switch features a Faston connection type for easy installation. It boasts a rated insulation voltage of 690 V and can withstand impulse voltages up to 4 kV—key attributes for ensuring safety and reliability in high-stakes applications.
The contact configuration includes both normally open (NO) and normally closed (NC) contacts (1NO+1NC), providing versatility for various control circuit requirements. The actuator is extended for ease of use, while the diameter is standardized at 22 mm for compatibility with existing systems.
Illumination is provided by a red BA9S lamp type within the power supply light block setup. This visual indication aids in quick status assessments during operation. The function is maintained, meaning it stays activated until manually reset—a beneficial feature for specific operational needs.
Constructed with a metal bezel material that adds to its robustness, the cutout size also matches the standard diameter of 22 mm ensuring seamless integration into panels or consoles.
Included in this comprehensive package are an operator unit, contact block, maintained accessories along with the power supply lamp block and lamp itself—everything needed for straightforward implementation into your system.
This pushbutton switch serves as an ideal choice where reliability under tough conditions cannot be compromised. Its design caters specifically to environments where equipment must perform consistently despite exposure to dust or water ingress thanks to its IP66 rating.
In conclusion, if you're seeking a dependable solution tailored for challenging industrial applications that demand both performance and compliance with international standards—this product delivers on all fronts without compromise on quality or functionality.
