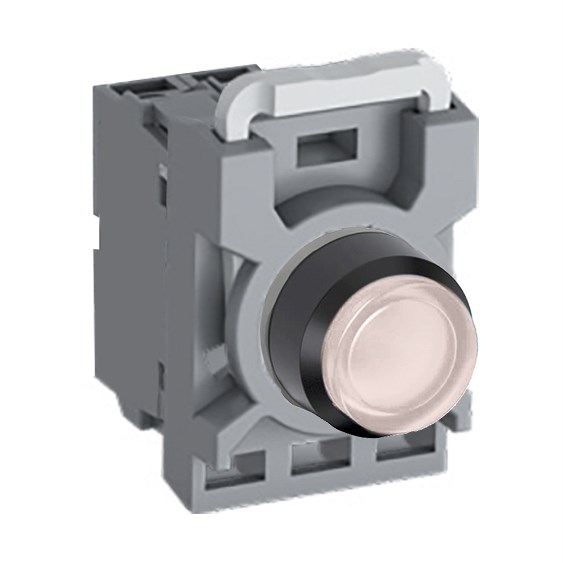

ABB MPPIEWA010 Illuminated Pushbutton Kit 22mm Extended Maintained White 12VAC/DC 1NO

Product Code: MPPIEWA010

  • Illuminated pushbutton with white LED
  • IP66 front protection for harsh environments
  • Operates at 12 VAC/DC, 10 A thermal current
  • Extended actuator with 22 mm cutout size
  • Includes operator and contact block components
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Voltage DC (V) 12
LED Block Rated Voltage 12 VDC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour White
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour White
Lamp Type LED
LED Colour White
Mode of Operation Maintained
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This illuminated pushbutton kit is designed for engineers seeking a white extended maintained solution. It features an integrated white LED and operates on 12V DC power. The contact configuration is 1NO, providing a reliable connection. The kit is part of a modular plastic range, ensuring flexibility in installation. With an IP66 rating for the front and IP20 rating for the terminals, this pushbutton kit offers protection against dust and water ingress.
