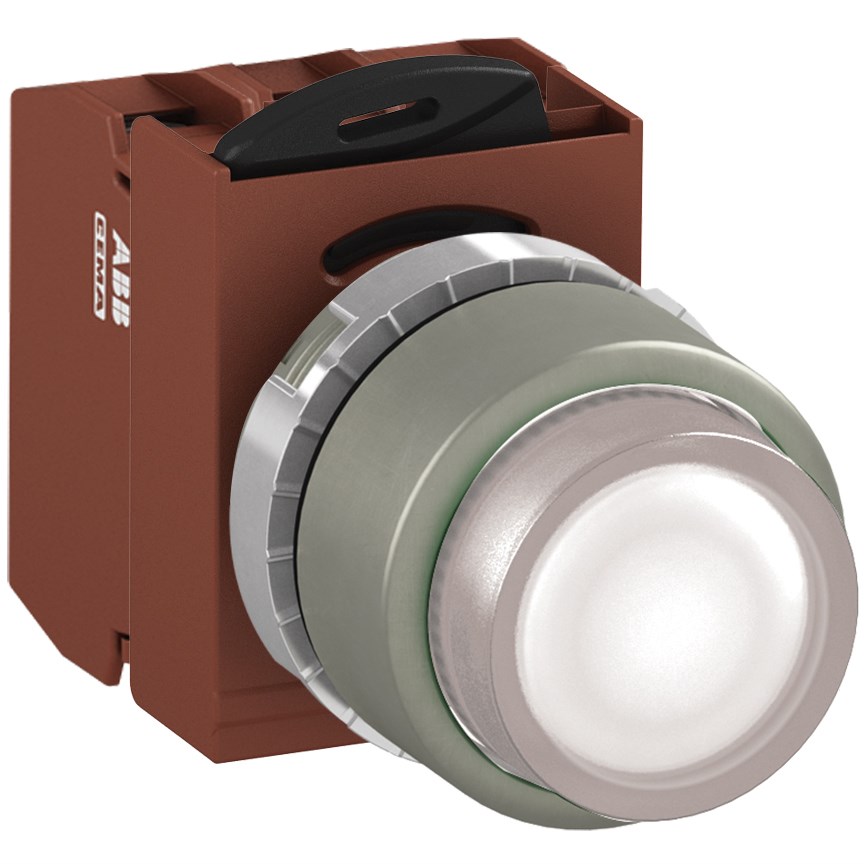

When it comes to reliable and robust control components for industrial applications, this illuminated pushbutton switch stands out as a practical choice. Designed specifically for demanding environments such as mining, construction, and heavy industry, this product offers both durability and functionality.
Operating at a rated voltage of 230 VAC/DC, the device is well-suited for various electrical systems. Its illumination feature enhances visibility in low-light conditions, ensuring operational efficiency around the clock. With an IP66 degree of protection, the unit is resistant to dust ingress and powerful water jets, making it ideal for harsh outdoor or indoor settings where exposure to elements is common.
The device complies with several standards including EN IEC 60947-5-1 and UL 508 among others. This adherence to international norms guarantees reliability and safety in diverse applications. It operates effectively within an ambient temperature range from -30 to 70 degrees Celsius, ensuring performance stability across different climates.
Connection-wise, the pushbutton utilizes a screw type connection which provides secure attachment in installations. The rated insulation voltage is set at 690 V while its rated impulse withstand voltage reaches up to 4 kV offering substantial protection against transient overvoltages that may occur due to switching operations or lightning strikes.
Featuring a contact configuration of 1 normally open (NO) + 1 normally closed (NC), it allows flexibility in circuit designs by providing both make-and-break contacts within one unit. The actuator type is extended with a diameter of 22 mm which fits standard cutout sizes simplifying installation processes.
The lamp color is white using BA9S lamp type known for its longevity and consistent brightness output essential for signaling purposes. As a maintained function switch, it stays in position after being activated until manually reset which can be crucial in emergency stop functions or other critical operations requiring persistent engagement.
Constructed with metal bezel material ensures robustness against mechanical impacts enhancing lifespan under rigorous use conditions prevalent in industrial sites. Alongside the operator mechanism itself are included components like contact block maintained accessories power supply (lamp block) providing comprehensive setup right out-of-the-box without needing additional purchases separately saving time effort during deployment phases thereby reducing overall project costs significantly too
This product’s rated thermal current capacity stands at 10 A supporting higher load circuits without overheating risks thus maintaining system integrity even under continuous usage scenarios typical within industrial domains Manufacturer Part Number
