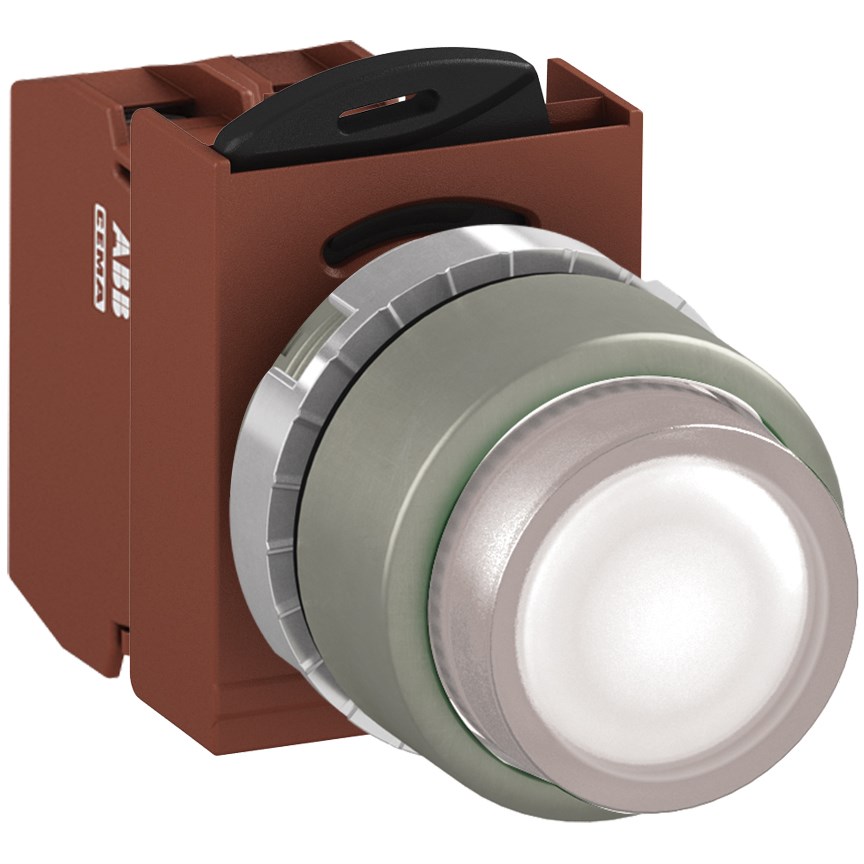

When selecting components for industrial and commercial applications, reliability and compliance with standards are critical. This particular illuminated switch is designed to meet the rigorous demands of sectors such as mining, construction, and heavy industry. With a rated voltage of 24 VAC/DC, it offers versatility across various low-voltage applications.
The product features an IP66 degree of protection, ensuring it can withstand harsh environments including dust and water ingress. This makes it suitable for rugged conditions often encountered in industrial settings.
Compliance with key international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 provides assurance that this component meets stringent safety and performance criteria.
Operating efficiently within an ambient temperature range from -30 to 70 degrees Celsius ensures functionality in extreme climates without compromising performance or safety. The screw connection type facilitates secure installation while maintaining robust electrical connectivity.
The switch has a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV which contributes to its durability under high-stress conditions. Its contact configuration is set at 1NC (normally closed), suitable for applications where circuit continuity needs monitoring.
Designed with an extended actuator type for ease of operation, the switch fits into a standard cutout size of 22 mm diameter making it compatible with existing panel designs without requiring modifications.
Illumination is provided by a white LED lamp housed within the unit's LED block light system. This not only enhances visibility but also ensures energy efficiency due to the long lifespan associated with LED technology.
Built to handle a rated thermal current of up to 10 A, this component can manage substantial electrical loads common in heavy-duty operations. The metal bezel material adds durability while providing a professional finish suitable for visible installations on control panels or machinery interfaces.
The maintained function means once activated; the switch remains in its position until manually reset—a feature particularly useful in processes requiring sustained operations without continuous manual intervention.
Included accessories such as the operator unit, contact block, maintained accessories along with the LED block make installation straightforward while reducing additional procurement requirements—streamlining integration into existing systems seamlessly.
This comprehensive suite makes this illuminated switch an ideal choice for professionals seeking reliable solutions tailored towards demanding industrial environments where safety and efficiency are paramount considerations during equipment selection processes.
