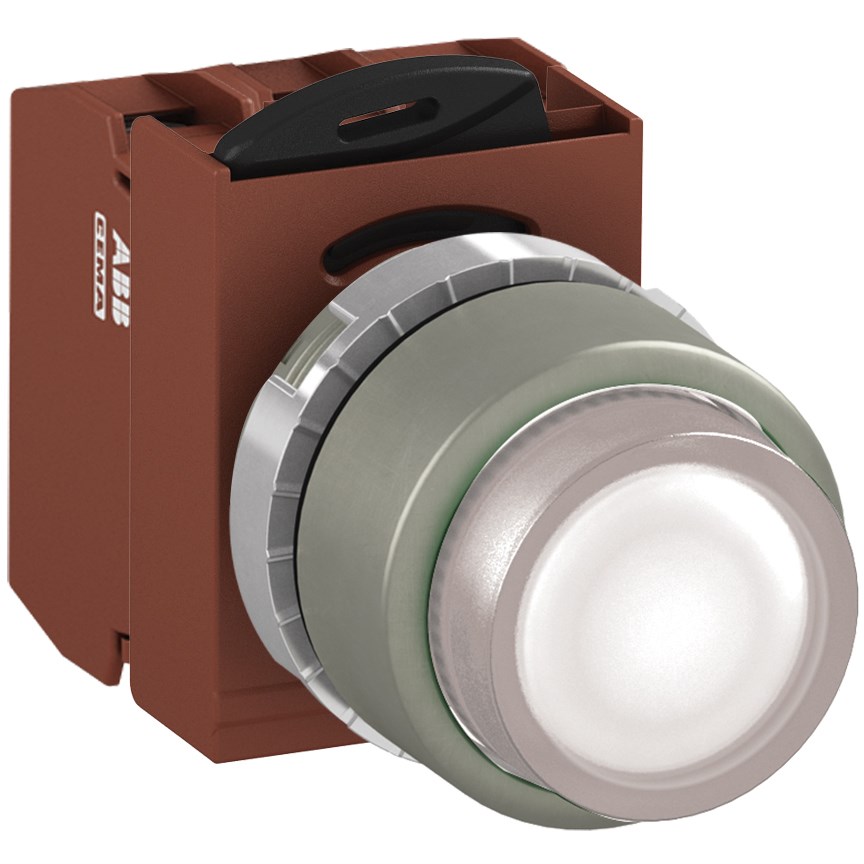

When selecting components for industrial applications, reliability and compliance with standards are key considerations. This illuminated pushbutton is designed to meet the demanding needs of mining, construction, and heavy industry environments. With a rated voltage of 24 VAC/DC, it ensures efficient operation in various settings.
The device boasts an impressive degree of protection at IP66, making it resistant to dust and powerful water jets—a crucial feature for harsh conditions. Compliance with multiple standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 further underscores its suitability for rigorous applications.
Operating efficiently within a broad ambient temperature range from -30 to 70 degrees Celsius enhances its versatility across different climates and operational environments. The screw connection type offers secure electrical connections that are easy to manage during installation or maintenance.
With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, this pushbutton is engineered to handle significant electrical loads safely. The contact configuration consists of two normally closed (2NC) contacts which ensure reliable circuit control.
The actuator is extended for ease of use while maintaining functionality over prolonged periods due to its maintained function design—ideal for operations requiring constant engagement without frequent manual intervention.
In terms of dimensions and aesthetics, the pushbutton features a diameter cutout size of 22 mm with an equally sized bezel made from durable metal material ensuring robustness against mechanical impacts while providing a sleek appearance. Illumination is provided by a white BA9S lamp type housed within the power supply light block type ensuring clear visibility even in low-light conditions.
Capable of handling up to a rated thermal current of 10 A makes it suitable for high-demand circuits without compromising performance or safety standards. This product includes an operator component alongside essential accessories like the contact block maintained accessories power supply (lamp block) and lamp all contributing towards seamless integration into existing systems.
For professionals seeking dependable solutions tailored specifically toward challenging industry sectors this illuminated pushbutton stands out as both practical & compliant offering peace-of-mind through every phase—from installation right down through daily usage cycles—ensuring your operations stay smooth uninterrupted no matter what challenges arise on-site!
