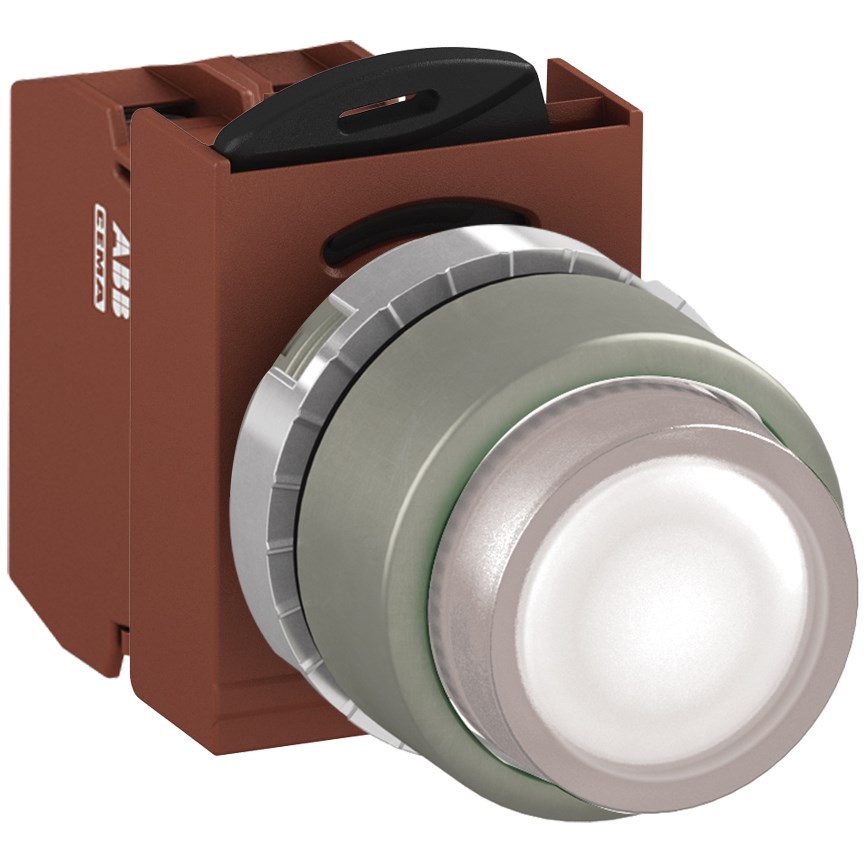

When selecting components for robust industrial applications, reliability and compliance with international standards are paramount. This illuminated control device stands out as a dependable choice for professionals in the mining, construction, and heavy industry sectors. It is designed to meet rigorous demands while maintaining ease of integration into existing systems.
Operating at a rated voltage of 6 VAC/DC, this device ensures energy efficiency without compromising on performance. The illumination feature enhances visibility in various environments, which can be crucial in dimly lit or complex operational settings. Its white BA9S lamp type provides clear indication while being easy to replace when necessary.
The actuator's extended design allows for intuitive operation, reducing the likelihood of user error—a vital consideration in high-stakes industrial environments. With a maintained function configuration, it offers consistency and stability during prolonged use.
Durability is further underscored by its IP66 degree of protection rating, safeguarding against dust ingress and powerful water jets from any direction. This makes it suitable for harsh outdoor conditions often encountered in heavy industry operations.
Conformance with EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 standards attests to its quality and safety across multiple jurisdictions. Additionally, UL 508 and CSA C22.2 No. 14 approvals ensure compatibility with North American regulatory requirements.
The device operates efficiently within an ambient temperature range from -30°C to 70°C—demonstrating resilience across diverse climates found throughout Australia’s varied landscapes.
For electrical specifications, it features a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV—providing robust protection against transient overvoltages that could potentially damage equipment or compromise safety.
Installation is simplified thanks to the Faston connection type which facilitates quick assembly without specialized tools—minimizing downtime during maintenance or system upgrades.
A contact configuration of one normally closed (1NC) ensures straightforward integration into control circuits where fail-safe mechanisms are critical. The unit also supports a thermal current rating up to 10 A—suitable for handling substantial loads typical within industrial setups.
The metal bezel material not only adds durability but also offers aesthetic alignment with other metallic fixtures commonly used in professional installations. Designed with a standard cutout size of 22 mm diameter—it fits seamlessly into pre-existing panel layouts without requiring modifications.
Included components such as the operator contact block maintained accessories power supply lamp block—and lamp provide everything needed for immediate deployment ensuring comprehensive functionality right out-of-the-box enhancing convenience especially during large-scale implementations where time-efficiency matters most.
