When selecting the right pushbutton for industrial or commercial applications, understanding the technical specifications is crucial. This pushbutton is designed to meet a range of demanding requirements with its robust features and compliance with international standards.

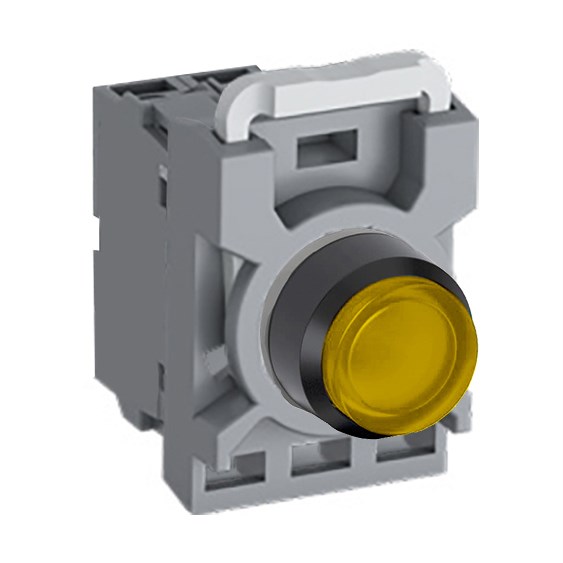

The pushbutton operates at a rated voltage of 24 VAC/DC, making it versatile for various electrical systems. It is illuminated, featuring a vibrant yellow LED lamp that ensures visibility in diverse lighting conditions. The illumination not only aids in easy identification but also enhances operational efficiency by providing clear status indication.
With an IP66 rating on the front and IP20 at the terminal, this pushbutton offers excellent protection against dust and water ingress—ideal for environments where exposure to harsh elements is common. Its construction adheres to several rigorous standards such as EN IEC 60947-1, EN IEC 60947-5-1, UL 508, and CSA C22.2 No. 14 among others, ensuring reliability and safety across different regions.
The ambient temperature range from -25 to 70 degrees Celsius allows this device to function effectively in both cold storage facilities and high-temperature industrial settings without compromising performance. It boasts a rated insulation voltage of 690 V and can withstand impulse voltages up to 6 kV—key attributes for maintaining system integrity under transient conditions.
A single normally open (1NO) contact configuration facilitates straightforward integration into control circuits while offering reliable switching capabilities with a maintained function type. This means once activated, it remains in position until manually reset—a feature beneficial for specific operational needs.
Measuring at a standard diameter of 22 mm with an extended actuator type, installation is simplified through compatibility with common panel cutout sizes. The bezel material made from durable plastic contributes to its lightweight yet sturdy design suitable for frequent use.
Included components such as the operator, contact block, contact block holder, and LED block ensure you have everything needed for seamless setup right out of the box. Rated at a thermal current of 10 A, it supports substantial electrical loads typical in industrial applications.
In summary, this pushbutton combines practical functionality with adherence to stringent safety standards making it an ideal choice for professionals seeking reliable performance in challenging environments while maintaining ease of use through its thoughtful design elements.
