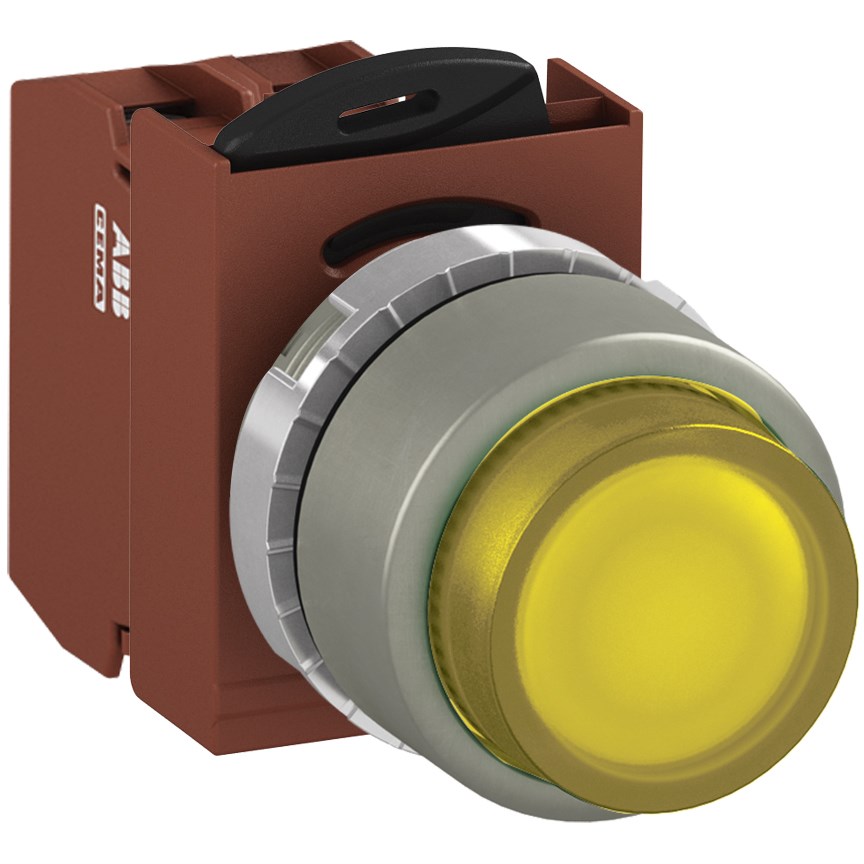

When it comes to reliable and robust industrial components, this illuminated pushbutton stands out for its versatility and durability, making it ideal for demanding environments such as mining, construction, and heavy industry applications. Operating at a rated voltage of 24 VAC/DC, this component is designed with an extended actuator type that ensures ease of use even in challenging conditions.
The pushbutton features a degree of protection rated at IP66, which means it offers excellent resistance against dust ingress and powerful water jets from any direction. This makes it suitable for outdoor or harsh industrial settings where exposure to the elements is a concern. Its compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 underscores its adherence to international safety and performance benchmarks.
With an ambient temperature range from -30 to 70 degrees Celsius, this device can operate efficiently across varied climatic conditions without compromising performance. The screw connection type simplifies installation while ensuring secure connectivity.
The pushbutton's electrical characteristics are noteworthy: it boasts a rated insulation voltage of 690 V along with a rated impulse withstand voltage of 4 kV. This provides robust protection against transient overvoltages commonly encountered in industrial settings. The contact configuration is specified as one normally open (1NO), supporting straightforward integration into existing control systems.
Measuring at a standard diameter of 22 mm with the same cutout size requirement ensures compatibility with most panel designs. The bezel material is constructed from metal for enhanced durability and longevity under frequent usage.
Illumination is provided by a yellow BA9S lamp type housed within the unit's power supply light block—ideal for clear visibility even in low-light conditions. The maintained function allows the button to stay in position once activated until manually reset or released—a feature often required in various operational contexts.
Included components comprise the operator itself alongside essential accessories such as the contact block and lamp block power supply—offering comprehensive functionality straight out of the box without needing additional purchases.
In summary, this illuminated pushbutton delivers on multiple fronts: reliability under tough conditions; compliance with rigorous standards; ease-of-use through intuitive design; high tolerance to environmental factors—all backed by solid technical specifications suited for heavy-duty applications across industries.
