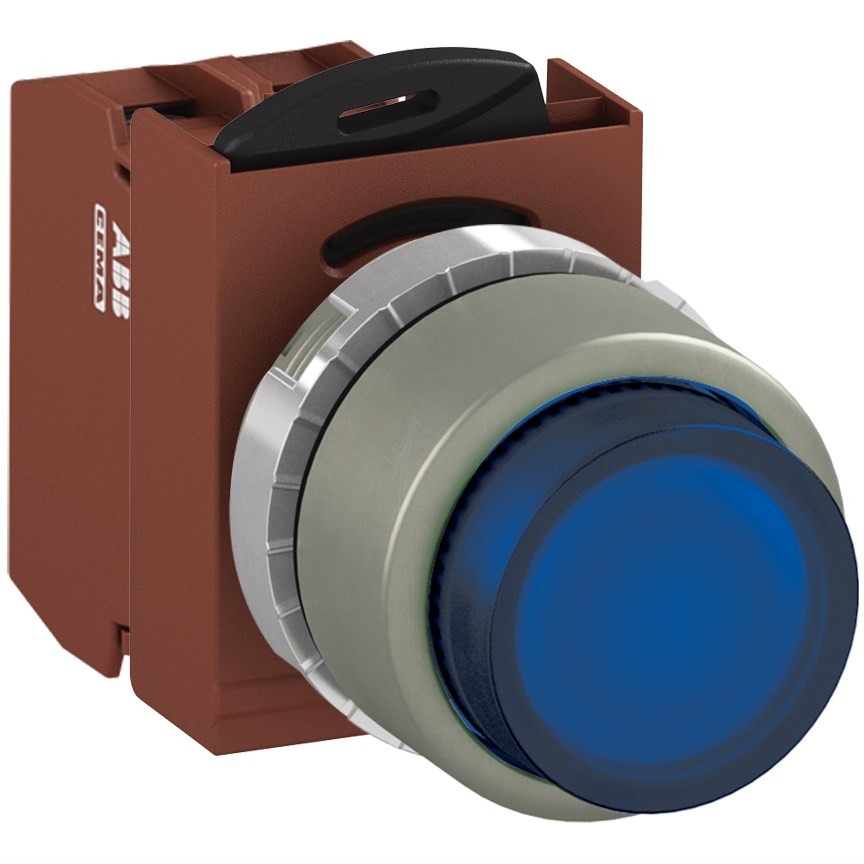

ABB MMPIELOSL210 Illuminated Pushbutton Kit 22mm Extended Momentary Blue 24VAC/DC 1NO Screw LED Block

Product Code: MMPIELOSL210

  • Operates on 24 VAC/DC with LED illumination
  • Robust IP66 protection for harsh environments
  • Extended actuator with a 22 mm diameter
  • Suitable for mining, construction, heavy industries
  • Includes operator, contact block, and LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 24 VAC/DC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Blue
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
