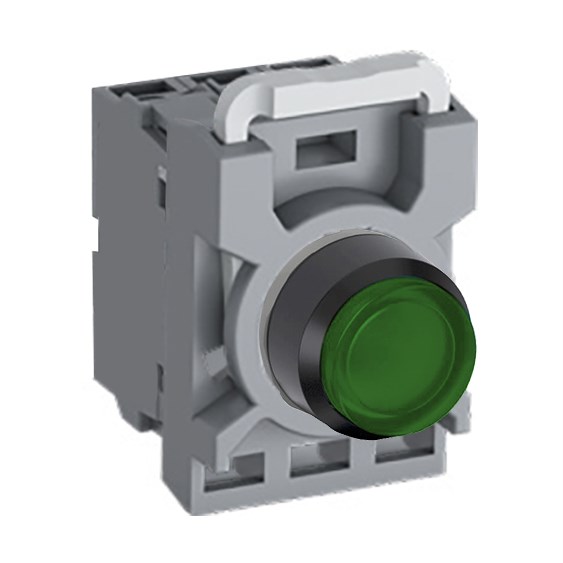

When selecting industrial components, especially those intended for rigorous environments, it's crucial to have a clear understanding of their specifications and capabilities. This illuminated pushbutton switch offers a reliable solution for various applications requiring robust performance and compliance with international standards.
Operating at a rated voltage of 230 VAC/DC, this switch is designed to endure challenging conditions while maintaining optimal functionality. The component's illumination feature is powered by an energy-efficient LED in green, ensuring visibility even in low-light settings. Its extended actuator type provides ease of use with a simple momentary function, making it suitable for quick operations that require immediate response.
One of the standout features is its degree of protection: IP66 at the front ensures resistance against powerful water jets and total dust ingress, ideal for industrial environments where exposure to harsh elements is common. The terminal side offers IP20 protection, safeguarding against accidental contact with live parts.
This product adheres to multiple standards and approvals such as EN IEC 60947-1/5-1/5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications. These credentials affirm its reliability and safety across diverse applications worldwide.
The ambient temperature range from -25 to 70 degrees Celsius allows this switch to perform consistently in both cold storage facilities and high-temperature settings without compromising its integrity or functionality.
With a rated insulation voltage of up to 690 V and an impressive rated impulse withstand voltage of 6 kV, this component can handle significant electrical stress without failure. It also supports a contact configuration of one normally open (NO) plus one normally closed (NC), providing versatility in control circuit designs.
For installation convenience, the pushbutton fits into standard cutouts with a diameter size of 22 mm—a common dimension that simplifies integration into existing panels or new setups. Additionally included are an operator unit along with necessary components like the contact block holder and LED block which ensure seamless assembly.
Built with practicality in mind, the bezel material consists of durable plastic that resists wear over time while keeping costs manageable compared to metal alternatives—ideal when budget considerations are paramount without sacrificing quality or performance.
Rated for thermal currents up to ten amperes (10 A), this device can support moderate power loads typical in many commercial or light-industrial tasks effectively meeting operational demands efficiently within specified limits ensuring longevity under normal operating conditions.
