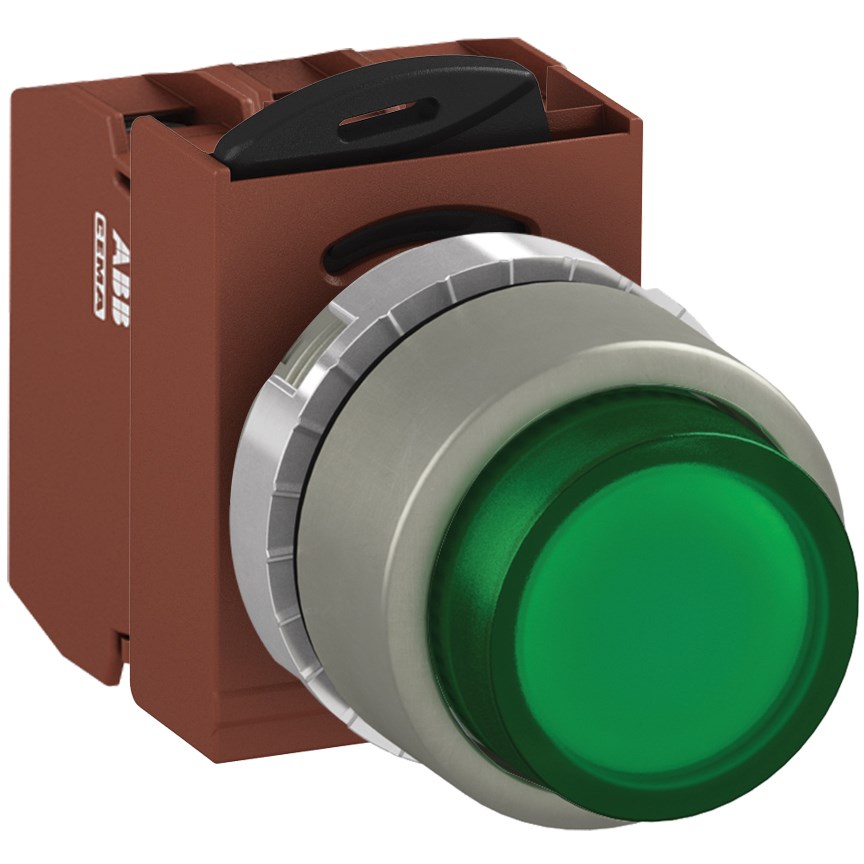

When it comes to selecting components for industrial applications, reliability and adherence to standards are paramount. This illuminated actuator is designed with these principles in mind, ensuring it meets the stringent demands of mining, construction, and heavy industry environments.
The device operates at a rated voltage of 24 VAC/DC and features an IP66 degree of protection. This ensures excellent resistance against dust ingress and powerful water jets—ideal for challenging conditions. The actuator complies with several key standards: EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14. These certifications provide peace of mind that the product meets international safety and performance benchmarks.
In terms of electrical characteristics, the actuator supports a rated insulation voltage up to 690 V and can withstand impulse voltages up to 4 kV. The contact configuration is set as one normally open (1NO) plus one normally closed (1NC), offering flexibility in circuit design.
Designed for versatility in harsh environments, this component functions optimally within a wide ambient temperature range from -30°C to +70°C. The faston connection type facilitates straightforward installation while maintaining secure connectivity.
The actuator's extended type provides ease of use with its momentary function—ideal for operations requiring temporary engagement without latching on activation. It has a standard diameter of 22 mm which fits seamlessly into existing panels or new installations alike.
Illumination is provided by a green BA9S lamp type housed within a robust metal bezel material that complements its durability. This illumination not only enhances visibility but also aids in quick identification during operation or maintenance tasks.
Included with this unit are essential components such as the operator itself along with contact block maintained accessories—a power supply lamp block—and the lamp itself—all contributing towards simplifying integration into your systems.
Whether it's replacing an existing unit or integrating into new setups this product offers reliable performance backed by rigorous testing and compliance with international standards making it suitable for demanding industrial applications where both safety and efficiency are critical priorities.
