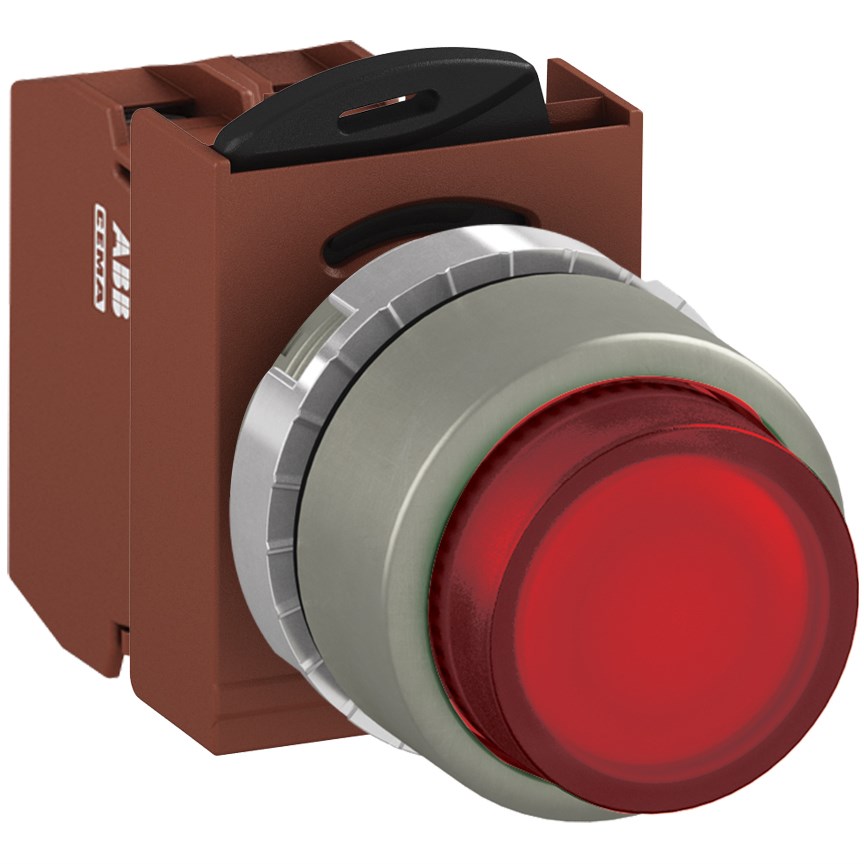

When selecting components for industrial and commercial applications, it's crucial to focus on reliability and compliance with industry standards. This particular illuminated push button is engineered to meet the demanding requirements of environments such as mining, construction, and heavy industry. Here’s a detailed overview to help you determine if it aligns with your technical needs.
The device operates at a rated voltage of 110 VAC/DC, making it versatile for various electrical systems. With an impressive degree of protection rated at IP66, this push button is designed to withstand harsh conditions including dust ingress and powerful water jets, ensuring durability in rugged settings.
Complying with multiple standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications ensures that the product meets international safety and performance benchmarks.
Its operational temperature range from -30°C to +70°C allows it to function effectively in both extreme cold and heat without compromising performance. The screw connection type facilitates straightforward installation while maintaining secure connectivity.
The push button features a rated insulation voltage of 690 V and can handle a rated thermal current of up to 10 A. These specifications indicate its capability to manage significant electrical loads safely.
With a contact configuration of 1NC (normally closed), this device provides reliable control options suitable for emergency stop functions or other critical operations where immediate disconnection is required.
Designed with an extended actuator type and a diameter of 22 mm, the push button fits standard cutout sizes seamlessly—ideal for integration into existing panels or equipment setups. Its robust metal bezel material further enhances its durability under mechanical stress.
Illumination is provided by an LED lamp in red—a clear visual indicator that stands out even in low-light conditions. The LED block light type ensures long-lasting illumination with minimal maintenance compared to traditional bulb types.
Functionality-wise, the momentary action means that the switch returns to its default position once released—essential for applications requiring temporary activation like signaling or machine operation controls.
Included components such as the operator unit, contact block, maintained accessories along with the LED block make this product comprehensive right out-of-the-box—streamlining procurement processes by reducing additional component sourcing requirements.
This illuminated push button offers robust performance tailored specifically for challenging industrial environments where reliability cannot be compromised.
