When selecting a robust and reliable component for industrial or commercial applications, understanding the specifics of your options is crucial. This particular product stands out with its practical design and adherence to high standards, making it suitable for various environments.

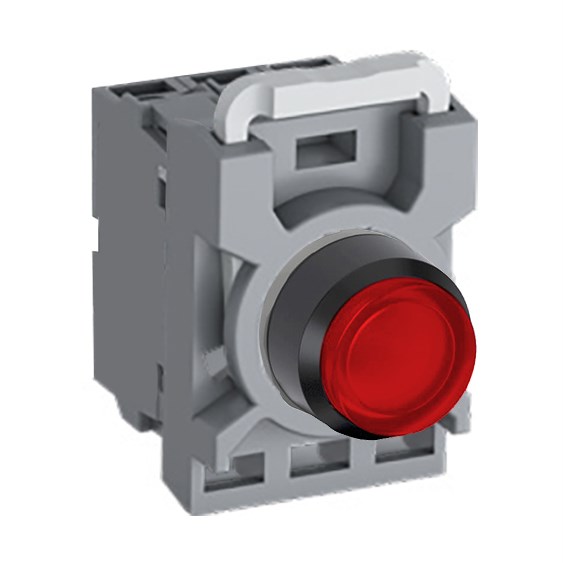

Operating at a rated voltage of 12 VAC/DC, this illuminated device ensures visibility and functionality in diverse settings. Its LED lamp emits a red glow, providing clear indication during operation. The extended actuator type offers ease of use while maintaining compactness with a standard diameter cutout size of 22 mm.
Durability is a key feature here, highlighted by the degree of protection it offers: IP66 at the front and IP20 at the terminal. This indicates strong resistance against dust ingress and powerful water jets from any direction on its front side, while ensuring reasonable protection internally.
The product complies with several international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, among others. Compliance with these standards guarantees that it meets stringent safety and performance criteria required in industrial applications.
With an ambient temperature range from -25 to 70 degrees Celsius, this component can withstand harsh environmental conditions without compromising performance. The rated insulation voltage is set at an impressive 690 V which speaks volumes about its capability to handle electrical stress efficiently.
A contact configuration of 2NC (normally closed) provides reliable switching operations necessary for many control circuits. Additionally, it boasts a rated impulse withstand voltage of 6 kV—an essential feature for equipment exposed to transient voltages.
The momentary function ensures that the switch returns to its original position once released—a common requirement in various control operations where temporary activation is desired.
Rated thermal current capacity reaches up to 10 A further emphasizing its suitability for handling moderate loads typical in numerous industrial settings. Constructed with plastic bezel material enhances both durability and cost-effectiveness without sacrificing quality or appearance.
Included within this package are essential components such as the operator itself along with a contact block holder and LED block—everything you need for straightforward installation and immediate use upon setup.
This product's thoughtful construction aligns well with technical requirements often demanded by professionals seeking reliability combined with efficiency in their electrical systems.
