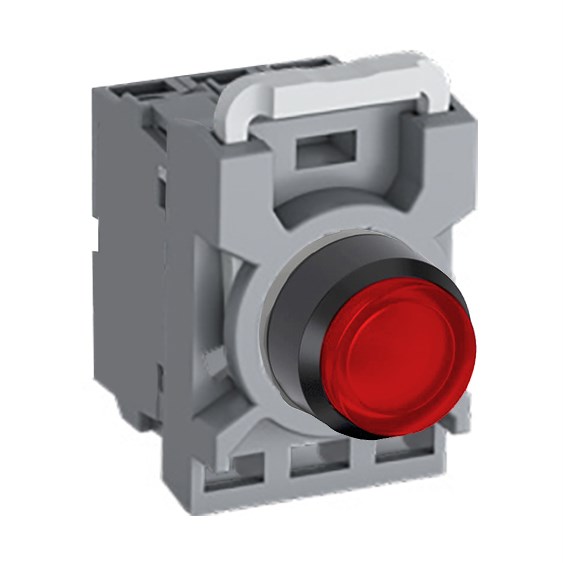

When selecting a reliable industrial component for your electrical systems, understanding the specifics can make all the difference. This illuminated pushbutton is designed with precision to meet rigorous standards and deliver consistent performance in demanding environments.
With a rated voltage of 220 VDC, this component is well-suited for various applications requiring direct current operation. The illumination feature ensures visibility, making it ideal for use in low-light conditions or where immediate identification is crucial. The LED lamp emits a clear red light, enhancing operational safety by providing unmistakable status indication.
The product boasts an impressive degree of protection: IP66 at the front and IP20 at the terminal. This means it's highly resistant to dust ingress and powerful water jets from any direction on its front side, while offering basic protection against touch at its terminals. These features make it suitable for both indoor and outdoor installations where exposure to harsh elements may occur.
Conforming to multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, this product guarantees compliance with global safety and performance benchmarks. Additionally, it meets UL 508 and CSA C22.2 No. 14 certifications, ensuring compatibility with North American safety requirements.
Operating efficiently across a broad ambient temperature range from -25°C to +70°C further underscores its versatility in diverse climates without compromising functionality or longevity.
The contact configuration of this device includes one normally open (NO) and one normally closed (NC) contact setup which provides flexibility in circuit design allowing for both control functions simultaneously within a single unit.
Rated insulation voltage stands at an impressive 690 V while the rated impulse withstand voltage reaches up to 6 kV—attributes that enhance its robustness against transient overvoltages common in industrial settings.
Featuring an extended actuator type with a standard diameter of 22 mm aligns seamlessly into existing panels requiring minimal modification thanks also partly due cutout size matching exactly same dimensions eliminating need additional adjustments during installation process itself!
Constructed using durable plastic bezel material not only reduces weight but offers excellent resistance against corrosion impacts thus prolonging overall service life expectancy considerably compared other materials available market today
Included components are comprehensive covering operator contact block holder along integrated LED block—all necessary parts together ensure straightforward assembly saving valuable time effort when integrating into larger system setups ultimately leading smoother project execution timelines reduced downtime periods associated maintenance tasks later down line too
This momentary function pushbutton delivers reliable thermal current rating up till maximum capacity ten amperes supporting varied load requirements effectively optimizing energy usage throughout operational lifecycle thereby contributing towards sustainable practices industry wide
