In the demanding environments of mining, construction, and heavy industry, reliability and performance are paramount. This illuminated actuator switch offers robust functionality tailored to meet these rigorous standards. Operating at a rated voltage of 230 VAC/DC, it ensures consistent performance across various applications.
Designed with an IP66 degree of protection, this device is built to withstand harsh conditions such as dust and water ingress. It complies with several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 for North American markets—ensuring global applicability and trustworthiness.
The actuator switch operates efficiently within ambient temperatures ranging from -30 to 70 degrees Celsius, making it versatile for both indoor and outdoor installations in diverse climates. The connection type is Faston which simplifies installation by providing quick-connect capabilities.
With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this product offers superior electrical resilience against transient overvoltages—a crucial feature for maintaining operational stability in electrically noisy environments.
The contact configuration includes two normally closed (2NC) contacts that enhance safety by ensuring circuits remain open until manually actuated. Its momentary function means the switch will return to its default position once released—ideal for applications requiring temporary activation.

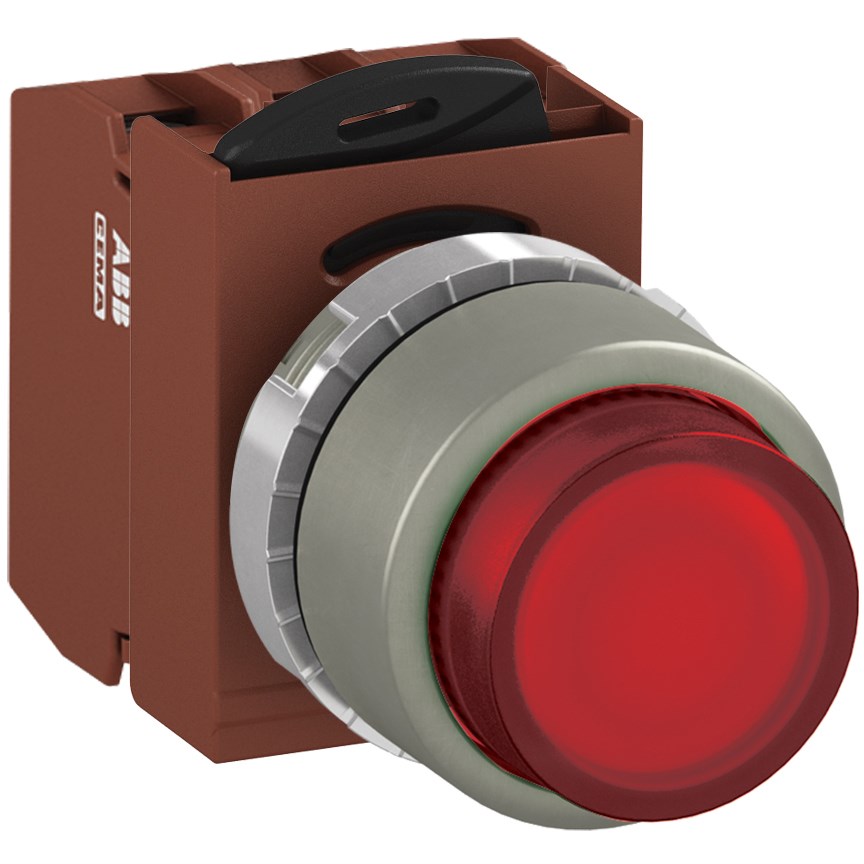

Featuring an extended actuator type with a diameter of 22 mm, the design focuses on ease-of-use even when operators are wearing gloves or working in low visibility conditions. The red lamp color enhances visibility while signaling operational status effectively.
Equipped with a BA9S lamp type housed within a metal bezel material known for durability under mechanical stress or impact—this component promises longevity alongside aesthetic appeal in control panels or machinery interfaces.
Designed with precision cutout size matching its diameter at 22 mm ensures seamless integration into existing setups without additional modifications required while accommodating power supply light blocks enhancing illumination efficiency during operation periods.
Included accessories such as operator components contact block maintained accessories power supply (lamp block) along lamp itself provide comprehensive solutions catering complete installation needs reducing procurement complexities associated piecemeal purchases often encountered industrial settings where time critical factor project timelines adherence matter most importantly
Rated thermal current capacity stands robustly at ten amperes aligning perfectly typical demands encountered high-power equipment scenarios frequently seen sectors mentioned earlier thus assuring end-users dependable service throughout lifecycle deployment phases ultimately contributing towards achieving desired productivity levels safely securely manner possible
