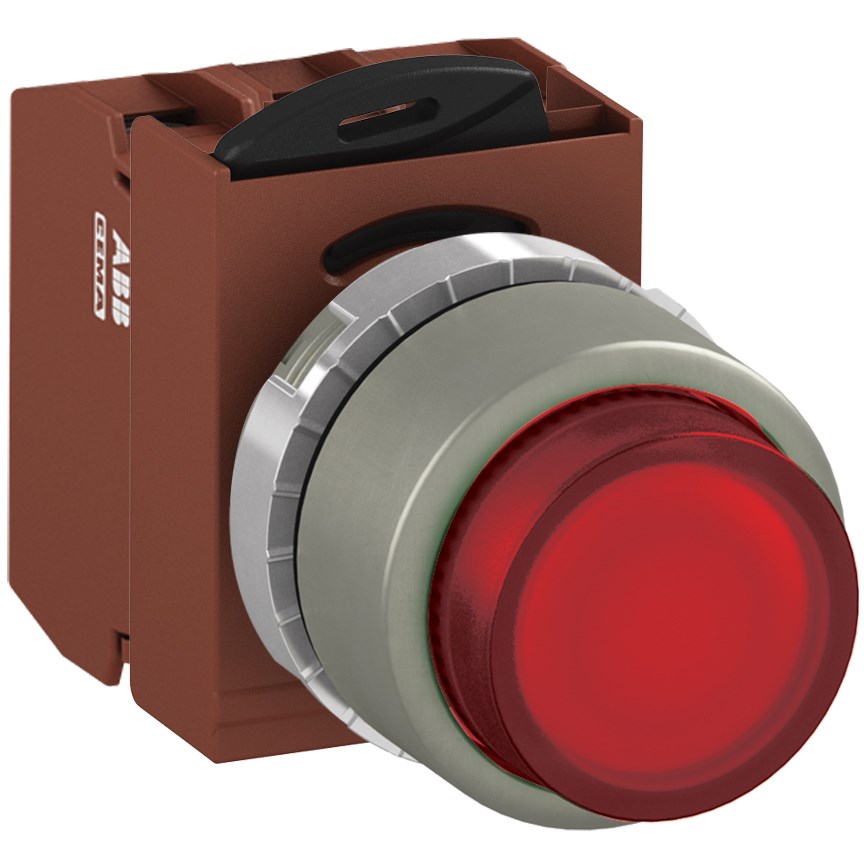

The industrial landscape demands robust and reliable components, especially in sectors like mining, construction, and heavy industry. This illuminated pushbutton switch is designed to meet these rigorous requirements with precision and durability. Operating at a rated voltage of 6 VAC/DC, this device ensures efficient performance across various applications.
One of the standout features is its illumination capability, highlighted by a red BA9S lamp type that enhances visibility in demanding environments. The extended actuator type offers ease of use while maintaining functionality under challenging conditions. With an IP66 degree of protection, this switch is well-guarded against dust and water ingress, making it suitable for harsh outdoor or indoor settings.
Engineered to comply with multiple standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 approvals ensure that the product meets international safety and performance benchmarks.
The switch operates efficiently within an ambient temperature range from -30 to 70 degrees Celsius, providing versatility for both cold storage facilities and high-temperature industrial sites. Its contact configuration of 1NO+1NC (one normally open + one normally closed) facilitates integration into complex control systems where dual-functionality may be required.
For electrical safety considerations, the rated insulation voltage stands at a robust 690 V while offering a rated impulse withstand voltage of up to 4 kV—safeguarding against transient overvoltages commonly found in industrial power networks.
In terms of construction details, the bezel material crafted from metal ensures longevity and resistance to mechanical stress. A diameter cutout size of 22 mm aligns with standard panel designs for seamless installation processes without additional modifications needed.
Connectivity is streamlined through Faston connection types which allow quick assembly or maintenance—an essential feature when minimizing downtime is critical in operational settings.
This momentary function switch supports a rated thermal current up to 10 A ensuring compatibility with various load requirements without compromising on performance integrity over time.
The package includes an operator unit along with necessary accessories like maintained accessories contact block power supply (lamp block) ensuring comprehensive setup right out-of-the-box saving valuable time during deployment phases across projects large or small alike whether it's new installations upgrades replacements etcetera
Overall this product delivers reliability efficiency compliance all wrapped within thoughtful engineering suited perfectly towards demanding environments found within Australia's vibrant industrial sectors
