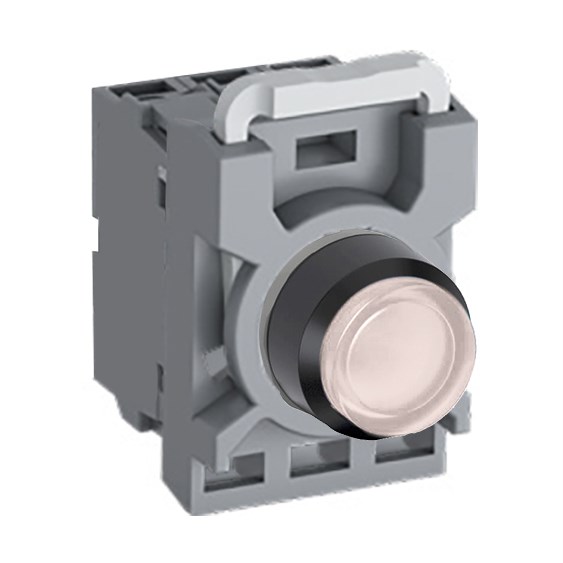

For professionals in the electrical engineering and automation fields, selecting the right components for your systems is crucial. The product at hand is a robust and reliable illuminated pushbutton switch designed to meet a variety of industrial and commercial applications. It operates within a rated voltage range of 110-130 VAC/DC, making it versatile for different power systems.
This switch stands out with its impressive degree of protection: IP66 at the front ensures excellent resistance against dust and powerful water jets, while an IP20 rating at the terminal provides basic protection against finger contact. These features make it suitable for both indoor and outdoor installations where exposure to harsh environments might be a concern.
Conforming to several international standards such as EN IEC 60947-1, EN IEC 60947-5-1, and UL 508 among others, this product assures compliance with global safety requirements. It has been tested under stringent conditions to ensure reliability across various applications.
The ambient temperature range from -25°C to 70°C allows this pushbutton to function effectively in diverse climates without compromising performance or safety. Its rated insulation voltage of 690 V underscores its capability to handle high-voltage scenarios securely.
With a contact configuration of 2NC (two normally closed contacts), this pushbutton is particularly suited for applications requiring fail-safe operation. The extended actuator type offers ease of use, providing clear tactile feedback during operation.
A notable feature is its LED illumination with a white lamp color that enhances visibility even in low-light conditions. This not only aids in quick identification but also contributes to energy efficiency due to the long lifespan and low power consumption typical of LED technology.
The momentary function means that the button returns to its original position after being pressed—ideal for operations requiring temporary activation like reset functions or signal initiation. With a diameter cutout size of 22 mm, it fits standard panel designs seamlessly.
Constructed with durability in mind, the bezel material made from plastic ensures longevity while maintaining cost-effectiveness. The inclusion of an operator, contact block, contact block holder, and LED block simplifies installation by providing all necessary components together.
Rated thermal current at 10 A indicates its ability to handle substantial current loads without overheating—a critical factor when considering operational safety and equipment longevity.
Overall, this illuminated pushbutton switch combines functionality with adherence to industry standards ensuring it meets technical requirements efficiently while offering ease-of-use features beneficial for operators in demanding environments.
