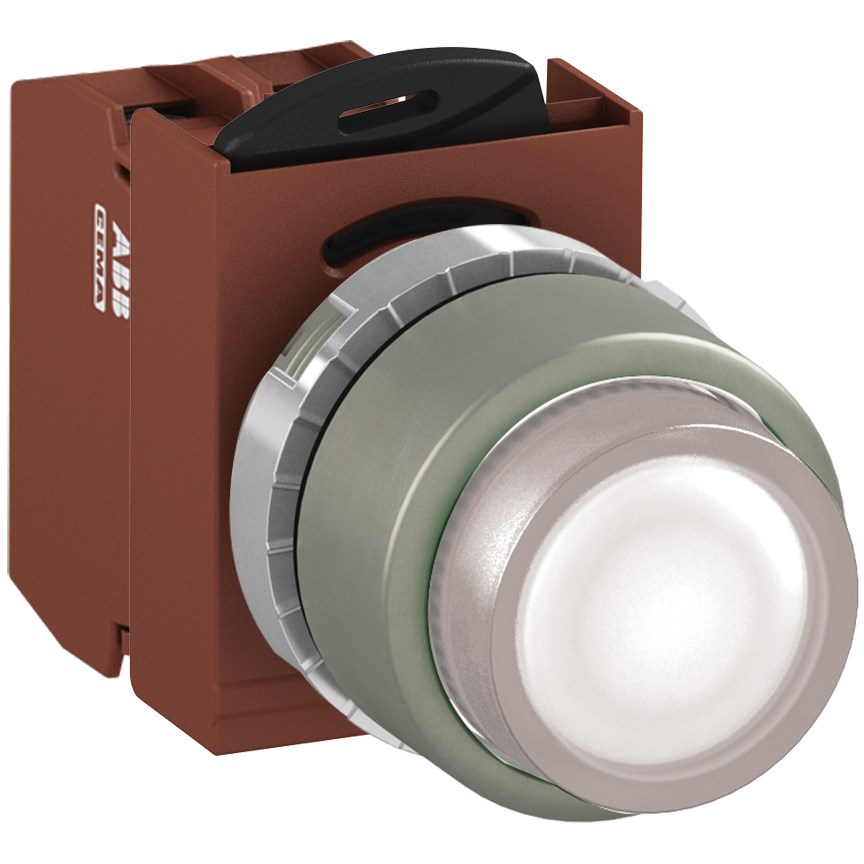

When selecting components for demanding environments, technical professionals require reliability and precision. This illuminated pushbutton switch is designed to meet the rigorous standards necessary for industrial applications such as mining, construction, and heavy industry. With a rated voltage of 110 VAC/DC, it provides versatility across different power systems.
The product boasts an impressive degree of protection with its IP66 rating, ensuring robust resistance against dust and water ingress. This makes it suitable for challenging conditions where exposure to harsh elements is a concern. Compliance with multiple international standards like EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 further underscores its credibility in safety and performance.
Operating efficiently within an ambient temperature range from -30 to 70 degrees Celsius showcases its resilience in both extreme cold and heat. The faston connection type facilitates quick installation or replacement when time is critical on-site.
With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, this pushbutton switch ensures high electrical endurance under transient overvoltage conditions. The contact configuration features one normally open (1NO) contact which suits applications requiring momentary actuation.
The actuator's extended type offers ease of use even while wearing gloves—a common requirement in industrial settings—while the compact diameter of just 22 mm allows integration into confined spaces without compromising functionality.
Illumination is provided by a white BA9S lamp housed within a metal bezel that adds durability while maintaining aesthetic appeal. The device supports easy identification during operation due to the clear visibility offered by the white light emission.
The cutout size matches the diameter at precisely 22 mm simplifying panel design considerations for engineers looking to streamline their system layouts without unnecessary modifications.
Included with this product are essential components: an operator unit; contact block; maintained accessories; power supply (lamp block); and lamp—all contributing to seamless setup right out-of-the-box reducing downtime associated with assembly complexities often encountered elsewhere in similar products on market shelves today
Designed specifically keeping heavy-duty usage scenarios foremost mind these attributes collectively ensure long-lasting dependable service life crucial industries rely upon daily operational success Manufacturer Part Number
