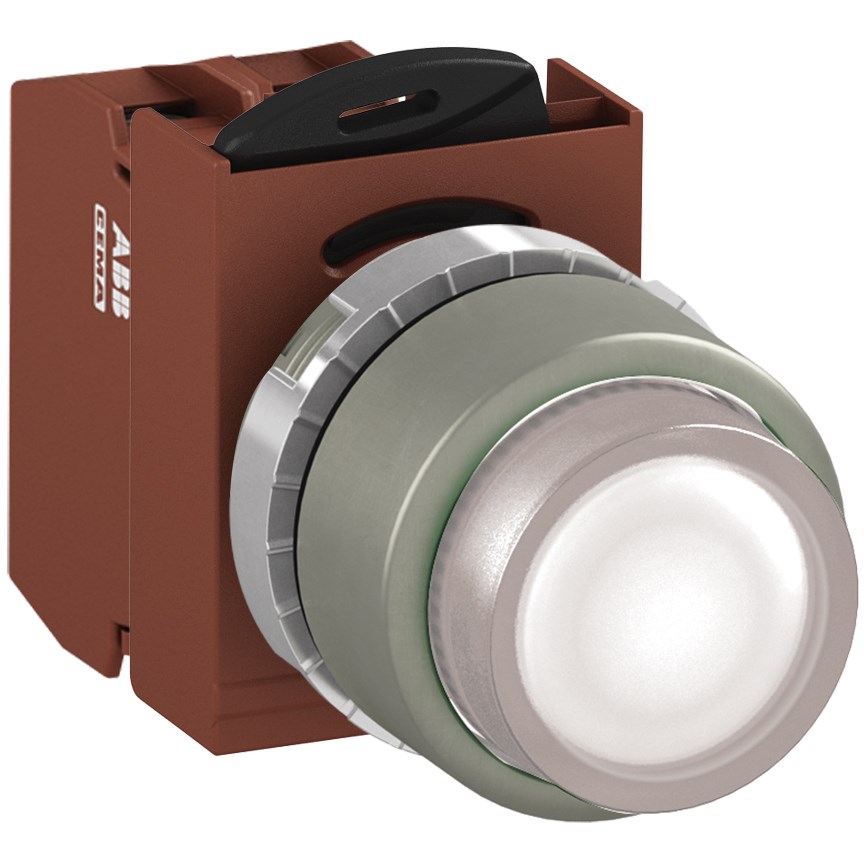

ABB MMPIEWOSL410 Illuminated Pushbutton Kit 22mm Extended Momentary White 230VAC/DC 1NO Screw LED Block

Product Code: MMPIEWOSL410

  • 230 VAC/DC illuminated LED with white lamp
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Metal bezel with 22mm diameter cutout
  • Ideal for mining, construction & heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 230 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour White
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
