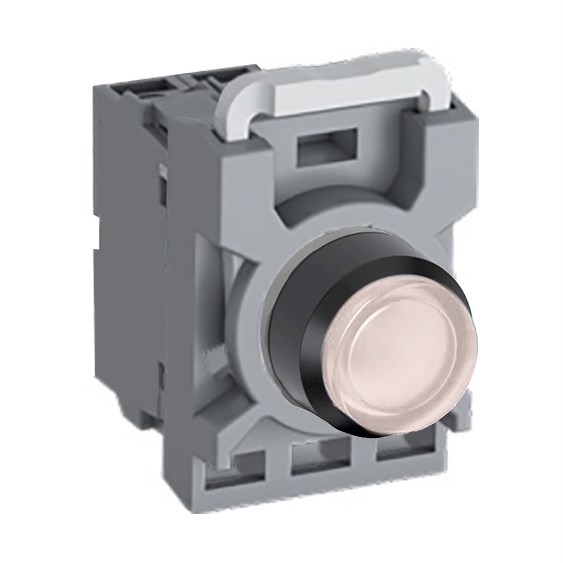

For professionals in the electrical and automation sectors, selecting the right components for your system is crucial. This 22 mm momentary pushbutton offers a robust solution with its array of features designed to meet industrial standards.
Operating at a rated voltage of 24 VAC/DC, this illuminated pushbutton ensures visibility even in low-light conditions, thanks to its white LED lamp. The device's extended actuator type provides ease of use, making it suitable for applications where quick responses are necessary.
One of the standout aspects is its high degree of protection. With an IP66 rating on the front and IP20 at the terminal, this component is well-suited for environments that require resistance to dust and water ingress while maintaining safety at connection points.
The product adheres to multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, and more. These certifications ensure reliability and compatibility with other industrial equipment. Furthermore, compliance with UL 508 and CSA C22.2 No. 14 adds an extra layer of assurance for North American markets.
Designed to operate efficiently within a broad ambient temperature range from -25 to 70 degrees Celsius, this pushbutton withstands various environmental conditions without compromising performance. Its rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 6 kV—attributes that contribute to its durability under transient overvoltages.
The contact configuration includes one normally closed (1NC) contact block capable of handling a rated thermal current up to 10 A. This makes it versatile enough for numerous control circuit applications while ensuring dependable operation over time.
Constructed with a durable plastic bezel material and featuring a cutout size consistent with industry norms (22 mm), installation is straightforward whether integrating into existing panels or new setups. The package includes essential components like the operator unit itself along with a contact block holder and LED block—offering comprehensive functionality right out of the box without needing additional parts.
This combination of technical specifications underscores why this pushbutton remains an integral part in both commercial and industrial settings seeking reliable performance coupled with adherence to stringent safety standards.
