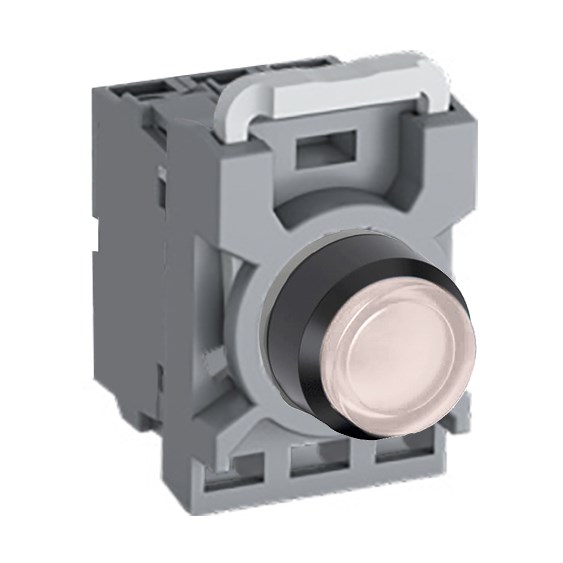

When it comes to selecting reliable industrial components, understanding the technical specifics is crucial. This illuminated control device is engineered to meet rigorous standards and provide dependable performance in various applications.
Designed for versatility, this product operates efficiently at a rated voltage of 24 VAC/DC. The illumination feature enhances visibility, making it suitable for environments where clear indication is necessary. With a robust degree of protection of IP66 at the front and IP20 at the terminal, this component ensures durability against dust and water ingress while maintaining safety.
This device adheres to an extensive range of standards: EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as EN 50013 and DIN 40050-9. It also meets UL 508 and CSA C22.2 No.14 approvals which further validate its reliability across international markets.
The ambient temperature range from -25 to +70 degrees Celsius allows this product to perform effectively in diverse climatic conditions without compromising functionality. Its rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of up to 6 kV ensuring high resilience against electrical surges.
With a contact configuration of two normally open (2NO) contacts and a momentary function actuator type that features an extended design, users can expect precise operation tailored to their needs. The diameter measures at a standard size of 22 mm facilitating compatibility with existing systems while offering ease during installation.
Equipped with white LED lighting for clear visibility even in low-light settings, this device's lamp type guarantees longevity and energy efficiency over traditional bulbs. The bezel material crafted from durable plastic contributes not only to its lightweight nature but also enhances resistance against environmental wear.
The cutout size matches the industry-standard diameter of 22 mm ensuring straightforward integration into panels or control systems without requiring additional modifications or adjustments.
Included within the package are essential components such as the operator unit itself along with accompanying contact block holder plus LED block allowing seamless setup right out-of-the-box saving time on assembly processes typically associated with separate purchases.
In summary; whether you're upgrading existing equipment or embarking on new installations—this illuminated control solution offers comprehensive specifications backed by stringent compliance measures ready-to-meet demanding operational requirements head-on!
