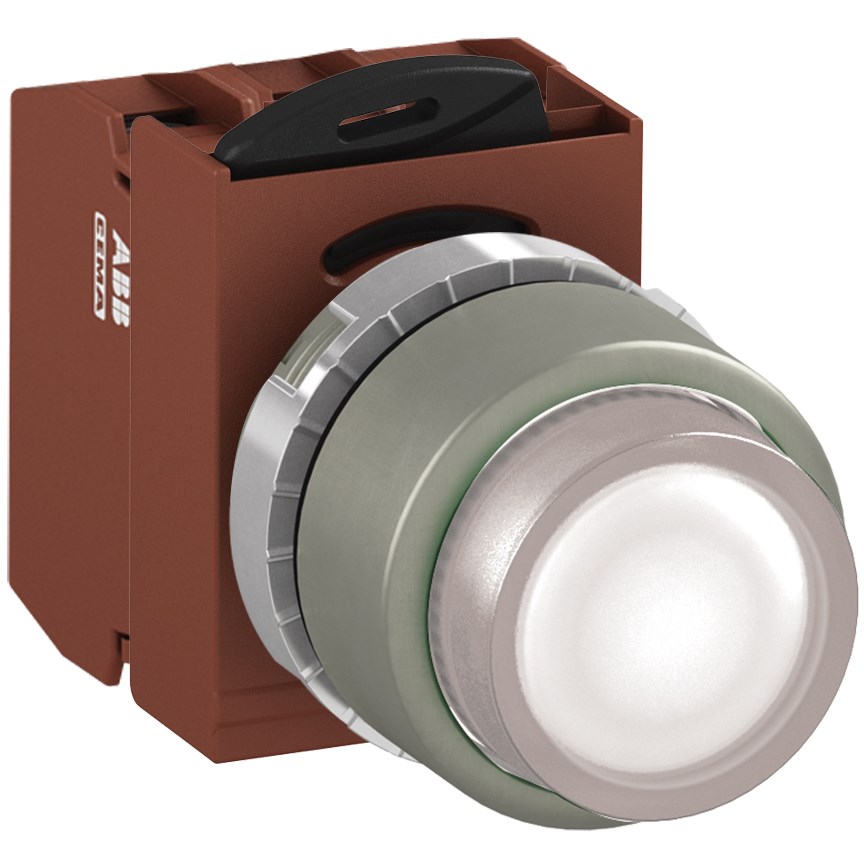

When selecting components for industrial applications, reliability and compliance with standards are paramount. This illuminated pushbutton is engineered to meet the rigorous demands of mining, construction, and heavy industry environments. Its robust design ensures consistent performance across a variety of challenging conditions.
Operating at a rated voltage of 24 VAC/DC, this pushbutton is both versatile and energy-efficient. The illumination feature enhances visibility, crucial for operations in dimly lit areas often encountered in industrial settings. With an IP66 degree of protection, it offers substantial resistance against dust and water ingress, ensuring durability even in harsh environments.
Compliance with several international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 alongside UL 508 and CSA C22.2 No. 14 certifications underscores its quality and safety credentials. These approvals make it suitable for use in installations requiring adherence to stringent regulatory requirements.
The ambient temperature range from -30 to 70 degrees Celsius allows it to function effectively across diverse climates without compromising performance or safety. Featuring a Faston connection type simplifies installation processes while maintaining secure electrical connectivity.
With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, this pushbutton is designed to handle significant electrical stress without failure—essential for high-demand industrial applications. The contact configuration includes one normally open (1NO) and one normally closed (1NC) contact set-up which provides flexibility in circuit designs.
The actuator type is extended for ease of use while the standard diameter cutout size of 22 mm facilitates straightforward integration into existing systems or panels. Equipped with a white BA9S lamp type housed within metal bezel material not only ensures longevity but also adds an aesthetic appeal that complements various equipment designs.
Functioning as momentary action device means it returns to its default position after actuation—a feature often preferred in control circuits where temporary engagement is required. Rated thermal current capacity stands at an ample 10 A supporting substantial loads typical within heavy-duty applications.
Included with this product are essential components such as the operator unit itself along with contact block maintained accessories power supply (lamp block) plus the lamp—delivering comprehensive functionality straight out-of-the-box reducing additional procurement needs.
In conclusion this illuminated pushbutton combines technical excellence with practical usability making it an ideal choice for professionals seeking reliable solutions tailored specifically towards demanding industrial scenarios while adhering strictly to necessary compliance mandates ensuring peace-of-mind operation throughout its service life.
