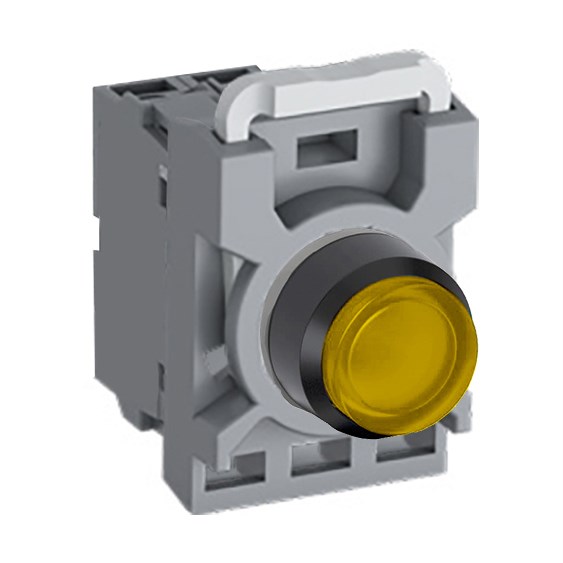

For professionals in the electrical engineering and automation fields, selecting the right components for your projects is crucial. This illuminated pushbutton switch offers a blend of robust performance and compliance with industry standards, making it a reliable choice for various applications.
Operating at a rated voltage of 12 VAC/DC, this switch ensures compatibility with low-voltage systems. The device is designed to withstand demanding environments, boasting an IP66 protection rating on its front side to guard against dust and powerful water jets. Meanwhile, the IP20 rating at the terminal end provides basic protection against finger contact.
The switch's construction adheres to several international standards including EN IEC 60947-1 and UL 508. Such certifications assure users of its quality and safety in industrial settings. Additionally, it supports an ambient temperature range from -25 to 70 degrees Celsius, offering versatility across different climates.
With a rated insulation voltage of 690 V and an impulse withstand voltage of 6 kV, this component is engineered for resilience against electrical surges. Its contact configuration features one normally closed (1NC) contact, suitable for circuits where breaking continuity is necessary upon actuation.
The actuator type is extended with a diameter of 22 mm which fits standard cutout sizes seamlessly. The momentary function means that the button returns to its original position once released—ideal for operations requiring temporary activation.
Illumination plays a vital role in visibility; hence this switch includes a yellow LED lamp that enhances identification even in dimly lit environments. The plastic bezel material provides durability while maintaining lightweight properties essential for easy installation.
Included with the product are an operator unit, contact block, contact block holder, and LED block—everything needed for straightforward assembly without additional purchases or modifications.
This pushbutton switch combines functionality with adherence to rigorous standards such as CSA C22.2 No.14 and DIN 40050-9 among others ensuring it meets both local Australian requirements as well as international benchmarks effectively supporting industrial operations across diverse sectors.
