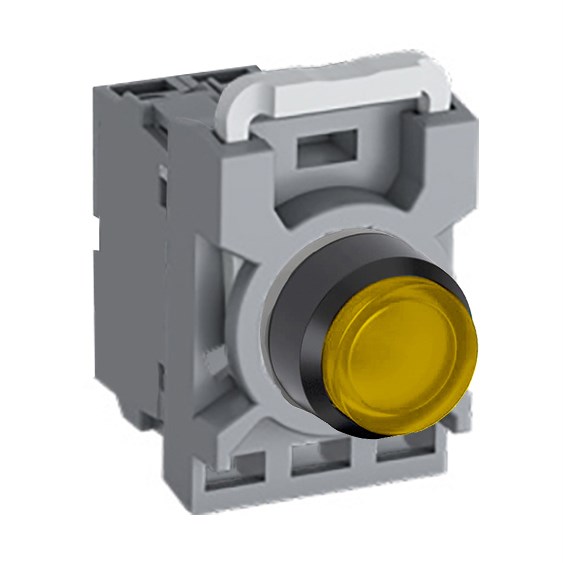

When selecting a reliable pushbutton for industrial and commercial applications, it's essential to consider the technical specifications that align with your operational needs. This illuminated pushbutton is designed to meet rigorous standards, ensuring robust performance in various environments.
Operating at a rated voltage of 12 VAC/DC, this pushbutton features an extended actuator type, providing ease of use while maintaining durability. Its momentary function is ideal for applications requiring short-term activation. The yellow LED illumination ensures visibility even in low-light conditions, enhancing operational efficiency.
The device boasts a high degree of protection with IP66 rating on the front side and IP20 at the terminal, safeguarding against dust ingress and powerful water jets while offering basic protection at terminals. Compliance with standards such as EN IEC 60947-1 and UL 508 further underscores its reliability and safety in diverse settings.
Engineered to withstand ambient temperatures ranging from -25 to 70 degrees Celsius, this pushbutton maintains functionality across varied climatic conditions. Its rated insulation voltage is an impressive 690 V, paired with a rated impulse withstand voltage of 6 kV—indicating resilience against transient overvoltages.
Featuring a contact configuration of 1NO (normally open), it supports straightforward integration into existing systems. The component's rated thermal current is set at 10 A, indicating its capacity to handle substantial electrical loads without compromising performance.
The bezel material is crafted from durable plastic, complementing the overall design while ensuring longevity. With a standardized cutout size and diameter of 22 mm, installation becomes hassle-free across different panels or enclosures.
This product includes all necessary components: operator, contact block, contact block holder, and LED block—facilitating quick setup right out of the box. Such comprehensive inclusion minimizes additional procurement efforts for installers or technicians.
In summary, this pushbutton offers a balanced combination of functionality and compliance with international standards—making it suitable for demanding industrial environments where reliability is paramount.
