When selecting components for industrial and commercial applications, precision and reliability are paramount. This pushbutton switch is designed to meet the rigorous demands of technical environments while maintaining user-friendly operation.

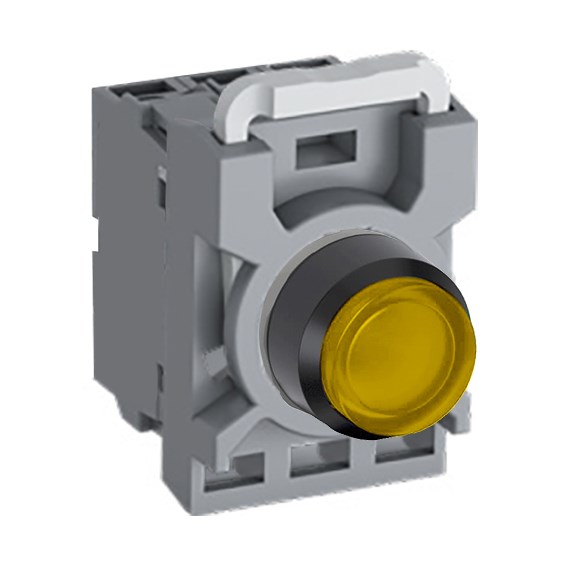

Operating at a rated voltage of 24 VAC/DC, this switch offers versatility in power sources, making it suitable for various installations. The illumination feature ensures visibility even in dimly lit conditions, with a vibrant yellow LED that serves as an immediate visual indicator.
With an IP66 rating at the front and IP20 at the terminal, this product guarantees robust protection against dust and powerful water jets from any direction on its front side, along with basic protection against finger contact at the terminals. These ratings make it ideal for environments where durability is critical.
Compliance with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 ensures that this component meets international safety and performance benchmarks. Additional certifications like UL 508 and CSA C22.2 No. 14 further affirm its suitability for global markets.
The temperature range from -25 to 70 degrees Celsius highlights its capability to perform reliably across diverse climate conditions without compromising on functionality or safety.
This device features a rated insulation voltage of 690 V and can withstand impulse voltages up to 6 kV, providing peace of mind regarding electrical resilience under transient overvoltage conditions.
The switch's contact configuration is specified as 2NO (two normally open contacts), which supports straightforward integration into control circuits requiring momentary action—ideal for start-stop operations or signal inputs in automation systems.
An extended actuator type allows ease of use with gloved hands or rapid activation when required by operational protocols. The diameter measures at a standard industry size of 22 mm, ensuring compatibility with existing panels or new installations needing precise cutout dimensions.
Constructed with a plastic bezel material, it balances durability with cost-effectiveness while maintaining aesthetic consistency within equipment designs. The inclusion of an operator, contact block holder, LED block enhances installation convenience by reducing additional procurement needs.
In summary, this pushbutton switch combines essential features tailored for demanding industrial settings where reliability cannot be compromised—making it a practical choice for engineers seeking dependable solutions within their systems' architecture.
