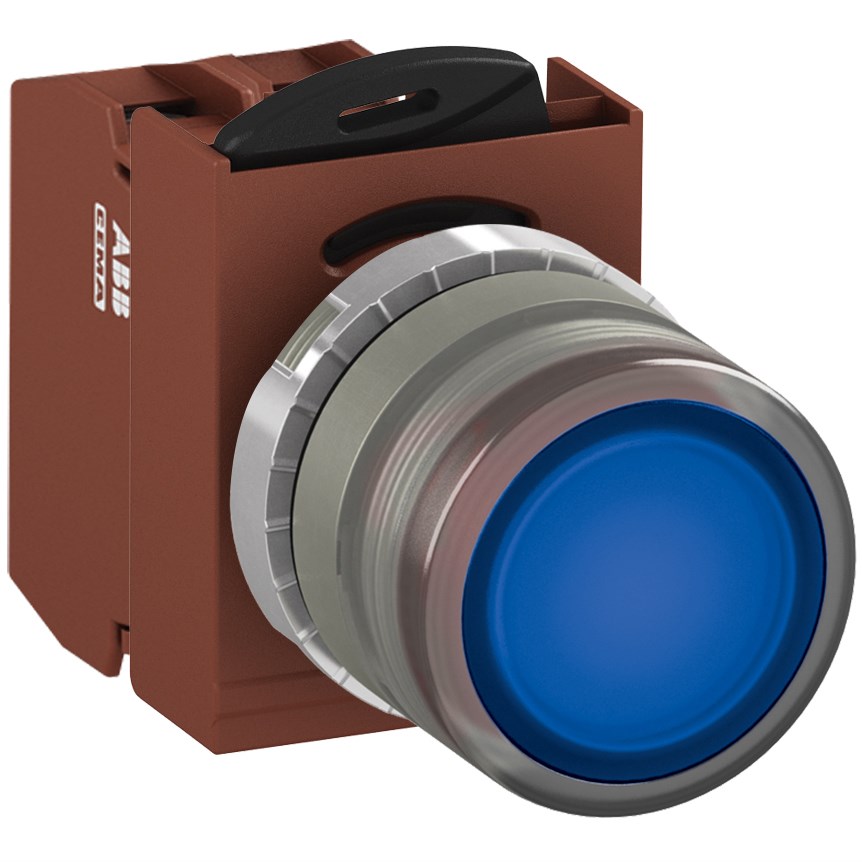

For professionals in the industrial and commercial sectors, selecting the right components is crucial to ensure operational efficiency and safety. This illuminated pushbutton switch is engineered to meet demanding applications, particularly in mining, construction, and heavy industry environments.
Designed with a rated voltage of 24 VAC/DC, this device ensures reliable performance across various systems. The inclusion of a blue LED lamp provides clear visibility even in low-light conditions, enhancing operational accuracy. The illumination feature is complemented by a robust degree of protection rated at IP66, safeguarding against dust and powerful water jets—a vital attribute for harsh industrial settings.
The pushbutton meets several international standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These endorsements underline its compliance with stringent safety and quality benchmarks required in technical applications.
With an ambient operating temperature range from -30 to 70 degrees Celsius, this component adapts well to extreme environmental conditions without compromising functionality. It features a screw connection type which facilitates secure installation while maintaining electrical integrity.
The rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 4 kV—an assurance of its capability to handle unexpected surges effectively. Its contact configuration includes one normally open (1NO) contact which suits various circuit designs requiring maintained operation.
A flush actuator type with a diameter of 22 mm ensures ease-of-use while maintaining compactness within control panels or consoles. Additionally, the bezel material made from metal adds durability against mechanical impacts commonly encountered in industrial settings.
This product also boasts a cutout size matching its diameter at 22 mm for seamless integration into existing panel layouts. The light blocks are based on LED technology known for their energy efficiency and long lifespan—key considerations for reducing maintenance costs over time.
Included accessories such as the operator, contact block, maintained accessories along with the LED block itself provide comprehensive solutions out-of-the-box ensuring that all necessary components are readily available for immediate deployment upon purchase.
In summary this illuminated pushbutton switch offers robust performance adaptability across diverse environments backed by recognized global standards making it an ideal choice where reliability precisionand longevity are non-negotiable requirements MPN:
