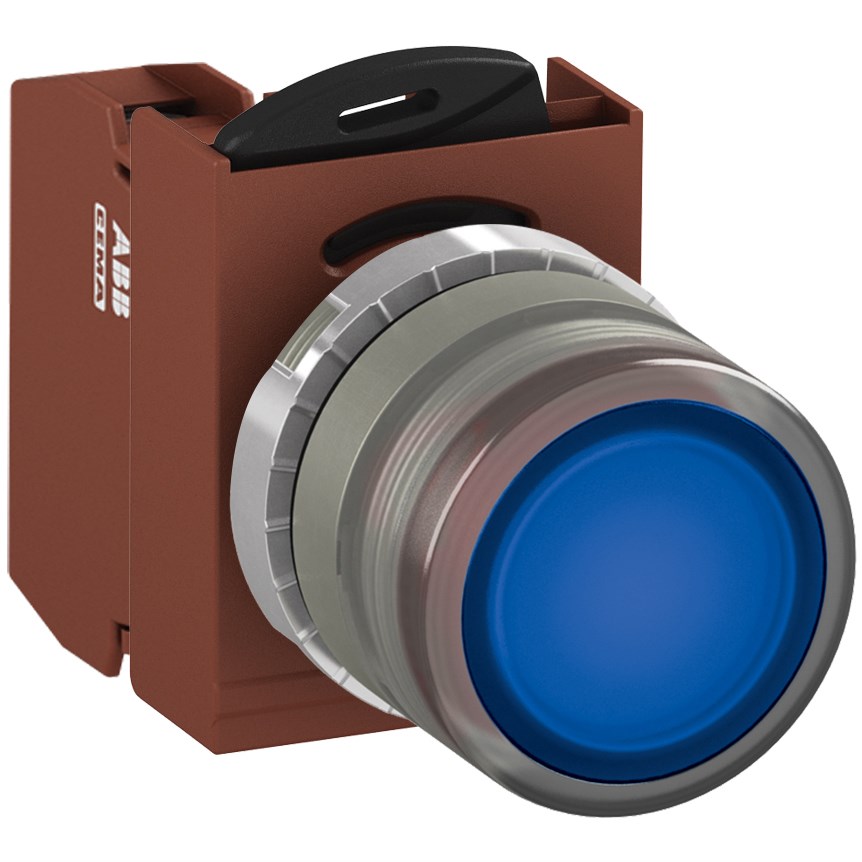

In the demanding environments of mining, construction, and heavy industry, reliability and durability are key. This illuminated pushbutton is designed to meet those challenges head-on with its robust specifications and compliance with international standards. Operating at a rated voltage of 24 VAC/DC, this device provides reliable performance across a wide range of applications.
The product's illumination feature is complemented by its blue BA9S lamp type, ensuring clear visibility even in low-light conditions. With an IP66 degree of protection, it stands resilient against dust and powerful water jets—an essential attribute for harsh industrial settings. The actuator type is flush, offering a sleek profile that minimizes accidental activations while maintaining ease of use.
Engineered for versatility and safety, the pushbutton adheres to multiple standards including EN IEC 60947-5-1 and UL 508 among others. These certifications guarantee that the product meets stringent quality requirements for electrical equipment used in control circuits.
Designed to operate within an ambient temperature range from -30 to 70 degrees Celsius, this pushbutton performs reliably under extreme weather conditions typical in outdoor or unregulated indoor environments. Its connection type is screw-based, providing secure and straightforward installation or maintenance.
A standout feature is its rated insulation voltage of 690 V alongside a rated impulse withstand voltage of 4 kV—indicative of its capacity to handle unexpected electrical surges without compromising functionality. The contact configuration includes one normally closed (1NC) contact which ensures fail-safe operation by cutting off power when needed.
With a diameter and cutout size both set at 22 mm, integration into existing systems or new installations is streamlined due to these standardized dimensions. The bezel material made from metal adds an extra layer of durability against mechanical impacts while enhancing the overall aesthetic appeal.
This device operates on a maintained function basis; once activated it remains engaged until manually reset—ideal for applications where continuous operation needs confirmation through visual feedback provided by illumination. Rated for a thermal current up to 10 A ensures compatibility with various control circuit loads typically encountered in industrial processes.
Included components such as the operator contact block maintained accessories power supply (lamp block) along with the lamp itself make this product ready-to-use right out-of-the-box reducing downtime during setup phases significantly—a crucial factor in high-paced work environments where every minute counts towards productivity goals.
