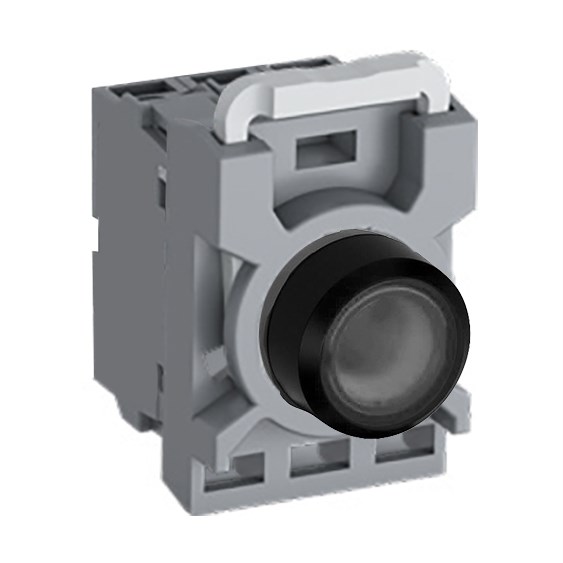

When selecting components for industrial and commercial applications, precision and reliability are key. This illuminated actuator is designed with those principles in mind, offering a robust solution for your electrical needs. Operating within a voltage range of 110-130 VAC/DC, this unit ensures consistent performance across various power systems.
The product's degree of protection is noteworthy; it boasts an IP66 rating at the front, providing excellent resistance against dust and water ingress—ideal for demanding environments. The terminal side has an IP20 rating, ensuring safety during handling and maintenance. Its compliance with multiple international standards such as EN IEC 60947 series and UL 508 underscores its reliability and quality assurance.
Functionality remains uncompromised even under challenging conditions, with an ambient temperature operating range from -25 to 70 degrees Celsius. This makes it suitable for diverse climates found across Australia—from the cooler southern regions to the warmer northern territories.
Safety is further enhanced by a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, providing ample protection against electrical surges. The contact configuration features two normally closed (2NC) contacts, which are essential for fail-safe operations in critical applications.
The actuator's flush design with a diameter of 22 mm fits seamlessly into standard panel cutouts without requiring extensive modifications. Illumination is provided by a clear LED lamp, ensuring visibility without compromising on energy efficiency—a crucial factor in reducing operational costs over time.
With maintained functionality, this device ensures that once activated, it remains in position until manually reset—perfect for applications requiring sustained operation or signaling.
Constructed with durability in mind, the bezel material is plastic yet engineered to withstand industrial wear and tear. Included components such as the operator, contact block, contact block holder, and LED block simplify installation processes while maintaining system integrity.
In summary, this illuminated actuator presents itself as a reliable component tailored for professionals seeking dependable solutions within their electrical installations. With its comprehensive specifications meeting stringent global standards coupled with user-friendly design elements—it’s an apt choice for both new projects and retrofitting existing systems.
