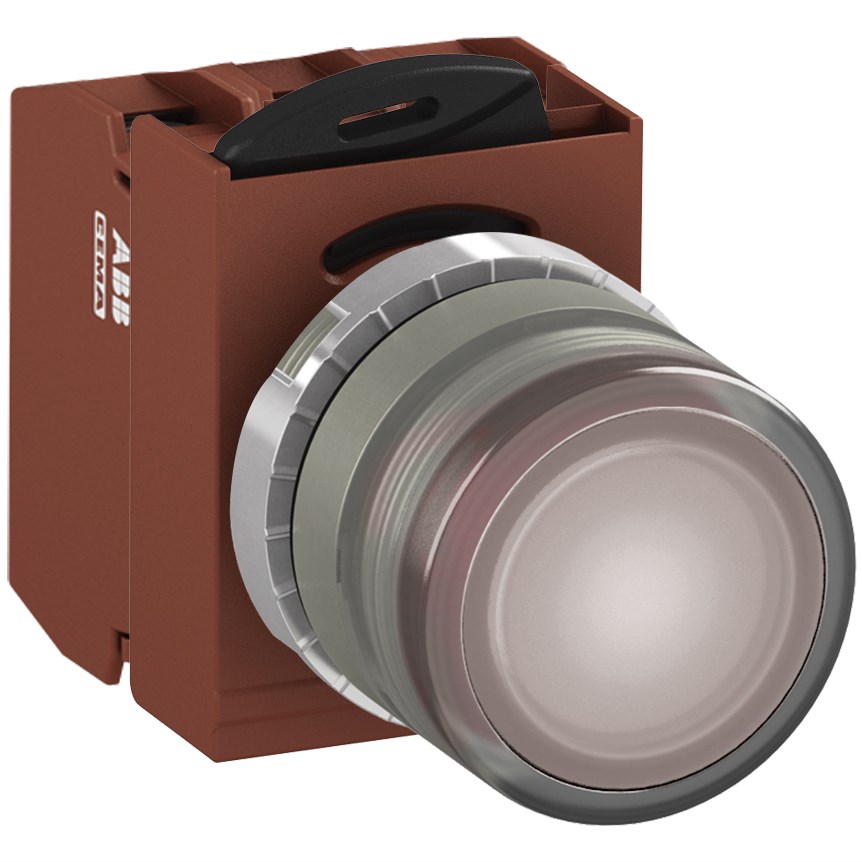

For professionals in the mining, construction, and heavy industry sectors, selecting the right components for control panels and machinery is crucial. This illuminated pushbutton switch offers a practical solution with its robust features tailored to meet demanding industrial environments.
Designed for versatility, this device operates on a rated voltage of 230 VAC/DC and includes an LED illumination system with a clear lamp colour. The flush actuator type ensures easy integration into various control panel designs while maintaining a sleek profile. With a diameter of 22 mm and matching cutout size, installation is straightforward and standardized across applications.
The device's durability is underscored by its IP66 degree of protection, making it resistant to dust ingress and powerful water jets—a vital feature for harsh industrial settings. It complies with several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 approvals—ensuring reliability and safety in operation.
Engineered to withstand ambient temperatures ranging from -30 to 70°C, this component remains functional under extreme conditions typical in outdoor or high-temperature environments found in heavy industries. Its screw connection type provides secure wiring connections which are essential for maintaining consistent performance over time.
Safety aspects are further enhanced by its rated insulation voltage of 690 V and an impressive rated impulse withstand voltage of up to 4 kV—protecting against potential electrical surges that can occur during operations. The contact configuration features two normally open (2NO) contacts designed for flexibility in circuit design while supporting a rated thermal current of up to 10 A.
The metal bezel material adds an extra layer of resilience against mechanical stress or accidental impacts common in busy industrial sites. Accompanying accessories include the operator unit itself along with the contact block maintained accessories LED block and LED ensuring you have everything needed for immediate setup without additional purchases.
Overall this illuminated pushbutton switch combines functionality safety compliance ease-of-use all within one compact package suitable across various industrial applications Manufacturer Part Number: [Your Product Code Here]
