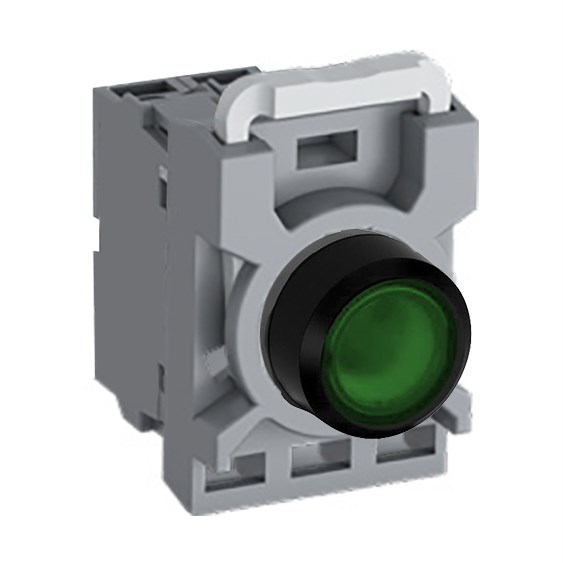

This pushbutton is a versatile and reliable choice for industrial and commercial applications, designed to meet the demands of various environments. It operates within a rated voltage range of 110-130 VAC/DC, providing flexibility in power sources. The illumination feature is powered by an energy-efficient green LED, ensuring visibility even in low-light conditions.
Engineered with durability in mind, this pushbutton boasts an impressive degree of protection: IP66 at the front and IP20 at the terminal. This means it is well-suited to withstand dust, water jets, and contact with live parts under specified conditions—a valuable asset for harsh environments.
The product adheres to several international standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 certifications. These standards ensure that the pushbutton meets stringent safety and performance criteria required across global markets.
Designed for a broad operational temperature range from -25 to +70°C, this pushbutton can perform reliably in diverse climates—from chilly warehouses to hot manufacturing floors—making it adaptable to various settings.
Its electrical characteristics include a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV. With a contact configuration of one normally open (1NO), it provides straightforward functionality suitable for many control panel applications.
The flush actuator type offers a sleek design with minimal protrusion from panels or surfaces while maintaining ease of use. The cutout size matches its diameter at 22 mm for seamless integration into existing systems without additional modifications.
Constructed with practicality in mind, the bezel material is plastic which balances cost-effectiveness with sufficient robustness for everyday use. Additionally included are all necessary components such as the operator unit itself along with contact block holder plus LED block ensuring hassle-free installation right out-of-the-box.
Functioning on maintained action mode allows users consistent engagement until manually reset offering assurance during operations where continuous input might be needed over time periods without interruption—ideal when precise control matters most like emergency stops or start/stop functions typical within automation processes across industries today!
With these comprehensive features combined into one package you’re equipped not just meeting but exceeding expectations whether upgrading current setups adding new capabilities altogether!
