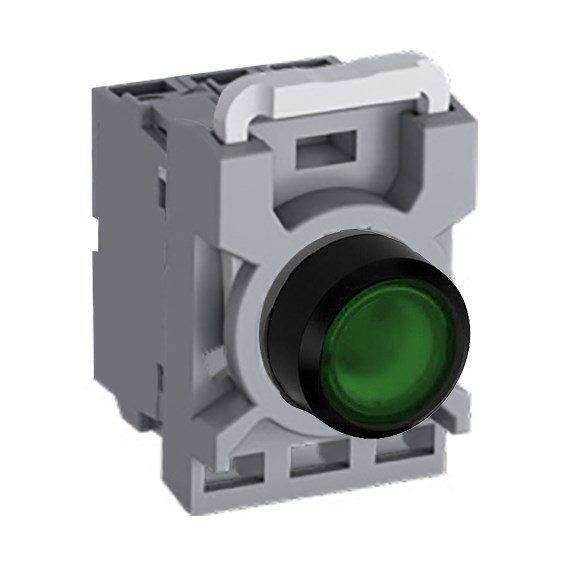

For professionals in the electrical engineering and automation sectors, understanding the specifics of a product is crucial to ensuring it meets your technical requirements. This illuminated pushbutton switch is designed with precision and reliability, making it a suitable choice for industrial and commercial applications.
Operating at a rated voltage of 110-130 VAC/DC, this device ensures versatility across various systems. Its illumination feature enhances visibility, which can be particularly beneficial in low-light environments or control panels that demand quick recognition and operation.
With an IP66 protection rating on the front side, this switch guarantees resistance against dust ingress and powerful water jets. Meanwhile, its IP20 terminal rating provides basic protection against finger contact with live parts. The robust design adheres to multiple international standards such as EN IEC 60947-1 and UL 508, confirming its compliance with stringent safety and performance criteria.
This product operates efficiently within ambient temperatures ranging from -25 to 70 degrees Celsius, ensuring reliable performance even in challenging environments. The rated insulation voltage stands at an impressive 690 V, while the rated impulse withstand voltage reaches up to 6 kV, indicating strong resilience against transient overvoltages.
The contact configuration of 2NO (normally open) allows for straightforward integration into various circuits where an open state until activation is required. Additionally, the actuator type is flush-mounted with a diameter of 22 mm for seamless installation into standard panel cutouts.
Equipped with a green LED lamp type that offers clear visual feedback when activated, this maintained function switch remains engaged until manually reset – ideal for applications requiring consistent operational status without continuous pressure applied by the operator. The inclusion of components like the operator unit itself along with a contact block holder further simplifies setup and maintenance tasks.
Rated thermal current capacity at 10 A underscores its capability to handle substantial power loads safely. Constructed using durable plastic bezel material not only ensures longevity but also contributes to lightweight handling during installation or replacement scenarios.
In summary: if you’re seeking an efficient solution characterized by high standards adherence alongside practical features tailored towards demanding industrial contexts – all encapsulated within compact dimensions fitting seamlessly into existing setups – then consider integrating this reliable illuminated pushbutton switch into your operations today!
