When selecting a pushbutton for industrial and commercial applications, it's crucial to consider technical specifications that ensure reliability and performance. This product is designed with precision to meet the demands of various environments.

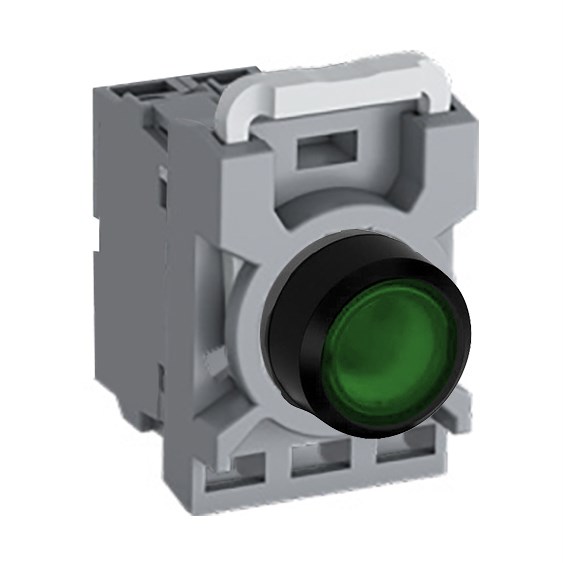

This illuminated pushbutton operates at a rated voltage of 12 VAC/DC, making it versatile for different electrical systems. Its illumination is provided by an energy-efficient green LED, offering clear visibility in diverse lighting conditions. The flush actuator type ensures a smooth interface, minimizing accidental activations while maintaining functionality.
A key feature of this pushbutton is its robust protection ratings: IP66 on the front side safeguards against dust and powerful water jets, while IP20 at the terminal end provides basic protection against finger contact. These ratings make it suitable for challenging environments where exposure to elements is a concern.
The device complies with several standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications. These endorsements assure users of its safety and compatibility with international norms.
Designed to operate effectively in ambient temperatures ranging from -25°C to +70°C, this pushbutton withstands harsh climatic conditions without compromising performance. It features a rated insulation voltage of up to 690 V which enhances safety by preventing accidental electrical discharge during operation or maintenance.
With a contact configuration of one normally open (1NO), this pushbutton supports straightforward circuit integration for control applications requiring simple on/off commands. It can endure an impulse withstand voltage up to 6 kV ensuring resilience against transient overvoltages often encountered in industrial settings.
The product’s thermal current rating stands at an impressive 10 A allowing it to handle substantial loads without overheating—a critical factor when used in high-demand circuits.
Constructed with a durable plastic bezel material complements its longevity while maintaining cost-effectiveness—a practical choice for budget-conscious projects without sacrificing quality or durability.
Installation is simplified thanks to its standardized cutout size of 22 mm—ensuring hassle-free replacement or new installations using existing infrastructure setups commonly found across many facilities.
Packaged inclusively with an operator contact block holder and LED block it provides all necessary components straight out-of-the-box facilitating quicker deployment times reducing downtime during setup phases significantly enhancing operational efficiency overall within your system framework.
