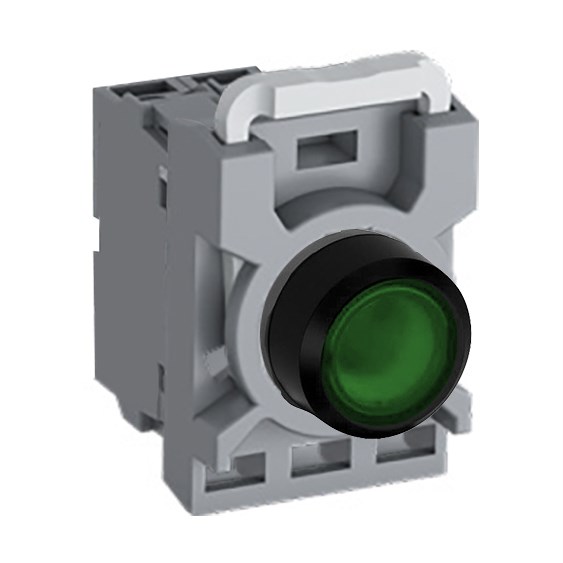

ABB MPPIFGA301 Illuminated Pushbutton Kit 22mm Flush Maintained Green 220VDC 1NC

Product Code: MPPIFGA301

  • Illuminated with green LED for clear visibility
  • IP66 front protection for harsh environments
  • Operates at wide temp range: -25 to 70°C
  • Flush actuator with a 22 mm cutout size
  • Includes operator, contact block & LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour Green
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type LED
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
