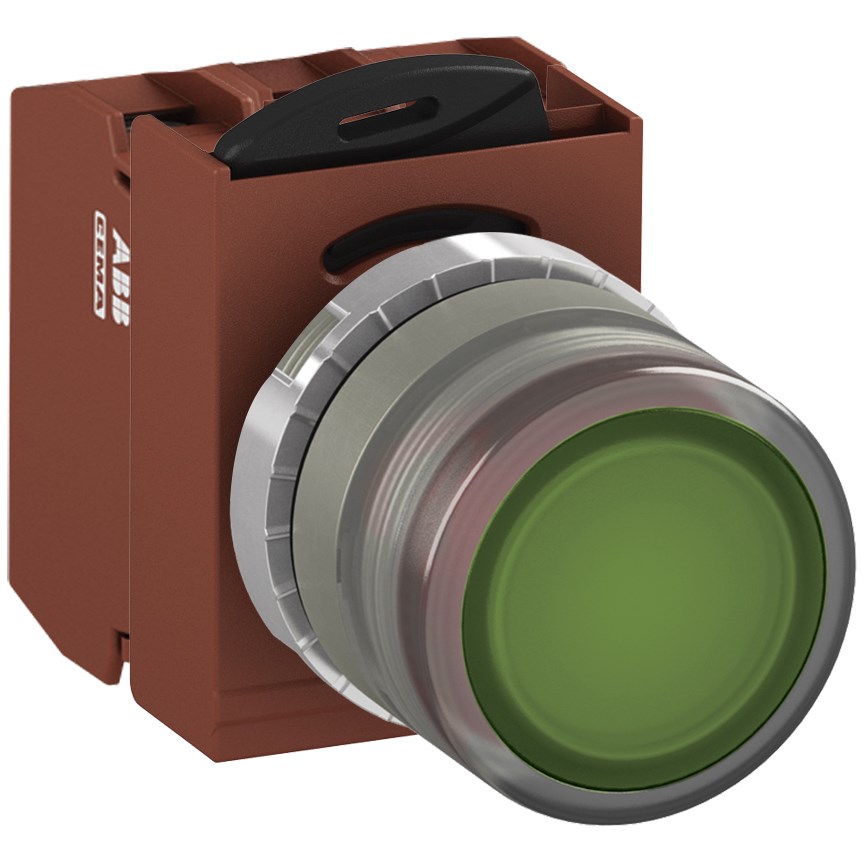

This industrial-grade illuminated pushbutton is designed to meet the rigorous demands of mining, construction, and heavy industry applications. With a rated voltage of 230 VAC/DC, it provides reliable performance across various electrical systems. The robust design includes a flush actuator type with a 22 mm diameter, ensuring compatibility with standard cutout sizes.
Engineered for durability, the product boasts an IP66 degree of protection, making it resistant to dust and powerful water jets. This level of protection is ideal for harsh environments often encountered in industrial settings. Compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 further underscores its reliability and safety credentials.
The device operates efficiently within an ambient temperature range from -30 to 70 degrees Celsius. This wide temperature tolerance ensures consistent functionality in both extreme cold and heat conditions typical in demanding industries.
Connection is facilitated by a screw type mechanism offering secure attachment and ease of maintenance. The contact configuration features two normally closed (2NC) contacts which are suitable for safety-related functions or control circuits requiring fail-safe operation.
Rated insulation voltage stands at an impressive 690 V while the rated impulse withstand voltage is set at 4 kV providing robust electrical isolation and surge protection capabilities essential in high-energy environments.
The illumination aspect is achieved through a BA9S lamp type emitting green light which enhances visibility even under low-light conditions common in industrial settings. The maintained function allows the button to stay engaged until manually reset or released.
Constructed with a metal bezel material this pushbutton combines strength with aesthetic appeal ensuring longevity without compromising on style or functionality. It supports a rated thermal current up to 10 A making it versatile for various power requirements.
Included components like the operator contact block maintained accessories power supply (lamp block) and lamp ensure comprehensive installation support reducing additional procurement needs for end-users.
Overall this illuminated pushbutton offers dependable performance rugged construction ease of use and compliance with international standards making it an excellent choice for professionals seeking reliable solutions in challenging environments.
