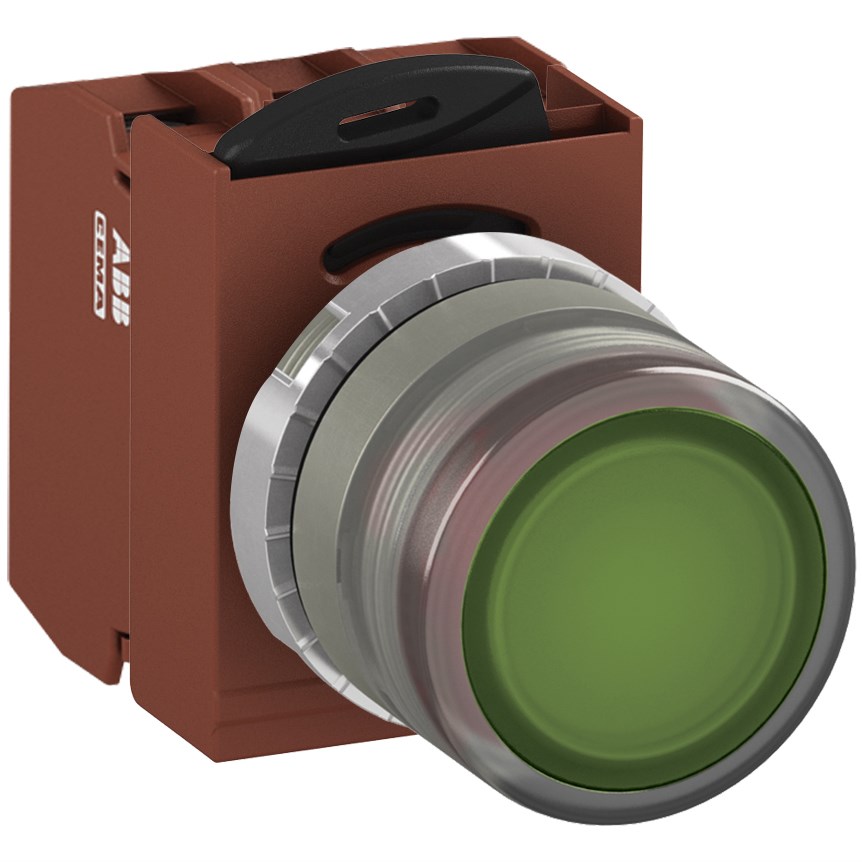

When selecting components for industrial applications, reliability and compliance with standards are key. This illuminated pushbutton switch is designed to meet the rigorous demands of sectors such as mining, construction, and heavy industry. With a rated voltage of 24 VAC/DC, it offers flexibility in various electrical environments.
The robust design includes a degree of protection rated at IP66, ensuring that it can withstand harsh conditions like dust and water ingress. This makes it suitable for both indoor and outdoor installations where durability is crucial. The product adheres to several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications.
Operating efficiently within a wide ambient temperature range from -30 to 70 degrees Celsius allows this switch to perform reliably under extreme weather conditions without compromising functionality or safety.
The connection type is screw-based which provides secure fastening and ease of installation or maintenance. It features a rated insulation voltage of up to 690 V with an impulse withstand voltage rated at 4 kV offering high resistance against electrical surges.
This model has a contact configuration of two normally closed (2NC) contacts providing effective control in circuit-breaking operations while maintaining safety protocols during system shutdowns or emergencies.
A flush actuator type ensures minimal protrusion from panels maintaining sleek aesthetics while being highly functional. The diameter measures at an industry-standard size of 22 mm fitting seamlessly into existing setups without requiring additional modifications.
Illumination plays an essential role in visibility during operation; hence this pushbutton comes equipped with a green BA9S lamp type that enhances user interaction through clear signaling especially critical in low-light environments or complex operational settings.
Functionality extends further with its maintained action meaning once activated it remains engaged until manually reset ensuring consistent operation when required over extended periods minimizing manual intervention needs significantly reducing downtime risks associated with accidental disengagements during critical processes
Constructed using metal bezel material adds another layer towards achieving longevity by offering enhanced mechanical strength preventing wear-and-tear commonly encountered across frequent usage scenarios
Cutout size aligns perfectly matching standard panel dimensions simplifying integration tasks whether retrofitting existing systems upgrading current infrastructure projects alike
Included components comprise operator contact block maintained accessories power supply lamp block alongside the main lamp facilitating comprehensive out-of-box readiness upon procurement eliminating additional sourcing efforts saving valuable time resources throughout project lifecycles
Overall this illuminated pushbutton switch stands out not just due to its technical specifications but also because it's engineered keeping practical application requirements forefront ensuring seamless compatibility across diverse industrial landscapes
