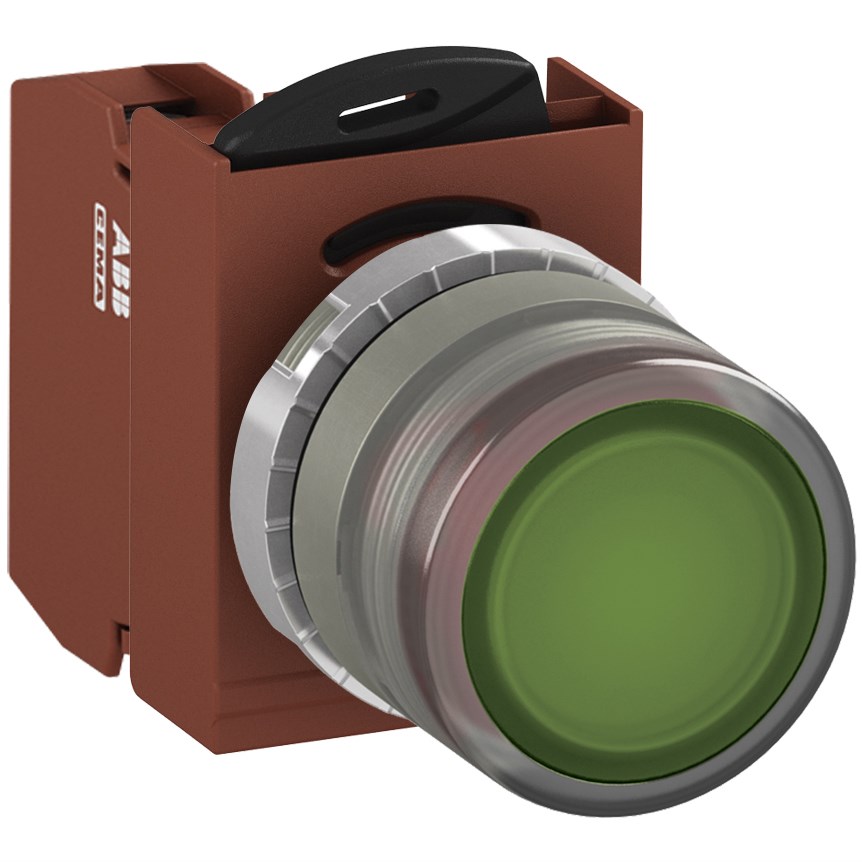

When it comes to selecting a reliable and robust component for industrial applications, this illuminated pushbutton stands out with its impressive specifications tailored for demanding environments. Designed to meet the rigorous standards of mining, construction, and heavy industry sectors, this product ensures both durability and functionality.
Operating at a rated voltage of 6 VAC/DC, the pushbutton is equipped with an illumination feature that enhances visibility in various settings. The green BA9S lamp type not only provides clear indication but also aligns with standard signaling practices. Its flush actuator design offers a sleek profile while maintaining ease of use.
One of the key highlights is its degree of protection rated at IP66, making it resistant to dust ingress and powerful water jets. This level of protection ensures longevity even in harsh outdoor conditions or dusty environments commonly found in industrial sites.
The pushbutton meets several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as North American standards UL 508 and CSA C22.2 No. 14. These certifications underscore its compliance with safety and performance benchmarks critical for industrial applications.
With an ambient temperature range from -30 to 70 degrees Celsius, this component can operate efficiently across diverse climatic conditions without compromising performance. The faston connection type facilitates quick installation and maintenance—an essential feature for minimizing downtime in busy operations.
In terms of electrical specifications, it boasts a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV which ensure safe operation under high-voltage conditions. The contact configuration is set as normally closed (1NC), providing versatility in control circuit designs where fail-safe operation is crucial.
The device supports a rated thermal current up to 10 A which accommodates various load requirements typical in heavy-duty applications. Constructed with metal bezel material, it promises robustness against mechanical impacts—a common occurrence on bustling work sites.
Installation is straightforward thanks to the cutout size matching its diameter at 22 mm ensuring compatibility with standard panel designs. Additionally included are components such as the operator unit, contact block maintained accessories power supply (lamp block) along with the lamp itself—offering everything needed for seamless integration into your system setup.
Overall this pushbutton delivers reliability precision manufacturing quality assurance essential factors when choosing equipment designed for challenging environments requiring consistent performance over time
