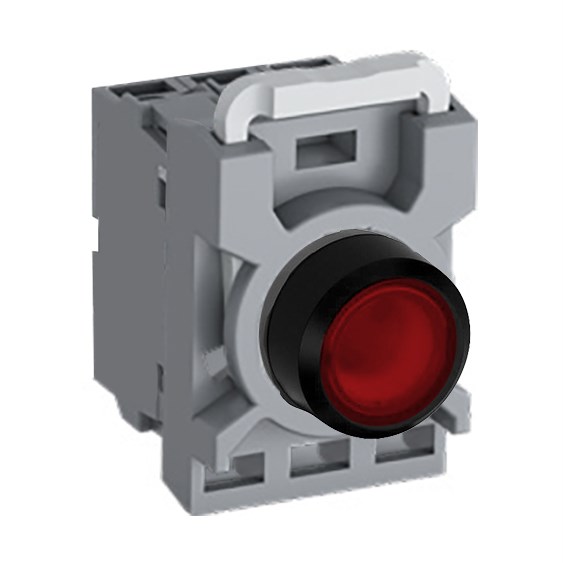

ABB MPPIFRA211 Illuminated Pushbutton Kit 22mm Flush Maintained Red 110-130VAC/DC 1NO+1NC

Product Code: MPPIFRA211

  • Operates at 110-130 VAC/DC with LED illumination
  • IP66 front protection for harsh environments
  • Flush actuator with a red LED lamp
  • Maintained function with 1NO+1NC contacts
  • Includes operator, contact block, and LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour Red
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type LED
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
